060-1432-04

Active

Honeywell Sensing and Productivity Solutions T&M

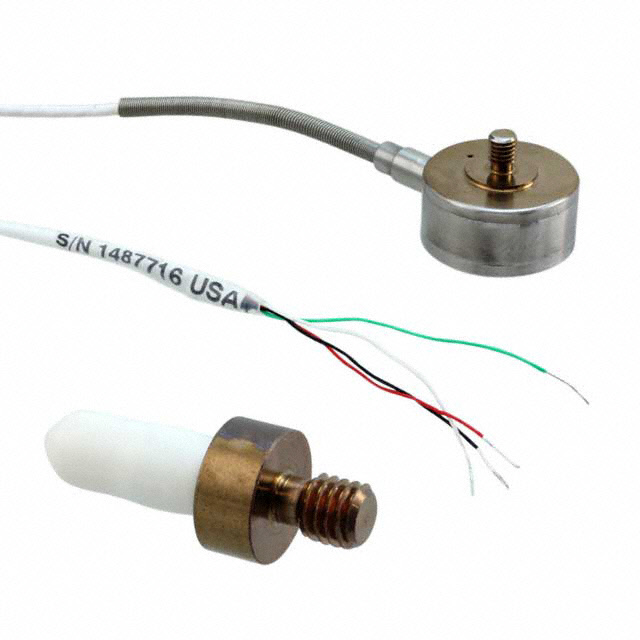

SENSOR FORCE LOAD CELL 250LBS

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions T&M

SENSOR FORCE LOAD CELL 250LBS

Technical Specifications

Parameters and characteristics for this part

Specification	060-1432-04

Accuracy	0.15 %
Actuator Style/Size	1/4-28 UNF, Stud
Actuator Type	Diaphragm
Compensated Temperature [Max]	71 °C
Compensated Temperature [Min]	15 °C
Includes	Sensor
Operating Force	250 lbs
Operating Force	113.4 kgf
Operating Temperature [Max]	121 °C
Operating Temperature [Min]	-54 °C
Sensor Type	Load Cell

Part	Compensated Temperature [Max]	Compensated Temperature [Min]	Actuator Style/Size	Actuator Type	Sensor Type	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Operating Force	Operating Force	Accuracy
Honeywell Sensing and Productivity Solutions T&M 060-1432-04	71 °C	15 °C	1/4-28 UNF Stud	Diaphragm	Load Cell	121 °C	-54 °C	Sensor	250 lbs	113.4 kgf	0.15 %
Honeywell Sensing and Productivity Solutions T&M 060-1432-07	71 °C	15 °C	1/4-28 UNF Stud	Diaphragm	Load Cell	121 °C	-54 °C	Sensor	1000 lbs	453.59 kgf	0.2 %
Honeywell Sensing and Productivity Solutions T&M 060-1432-08	71 °C	15 °C	1/4-28 UNF Stud	Diaphragm	Load Cell	121 °C	-54 °C	Sensor	500 lbs	226.8 kgf	0.15 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1627.07

General part information

SENSOR FORCE LOAD CELL 250LBS
