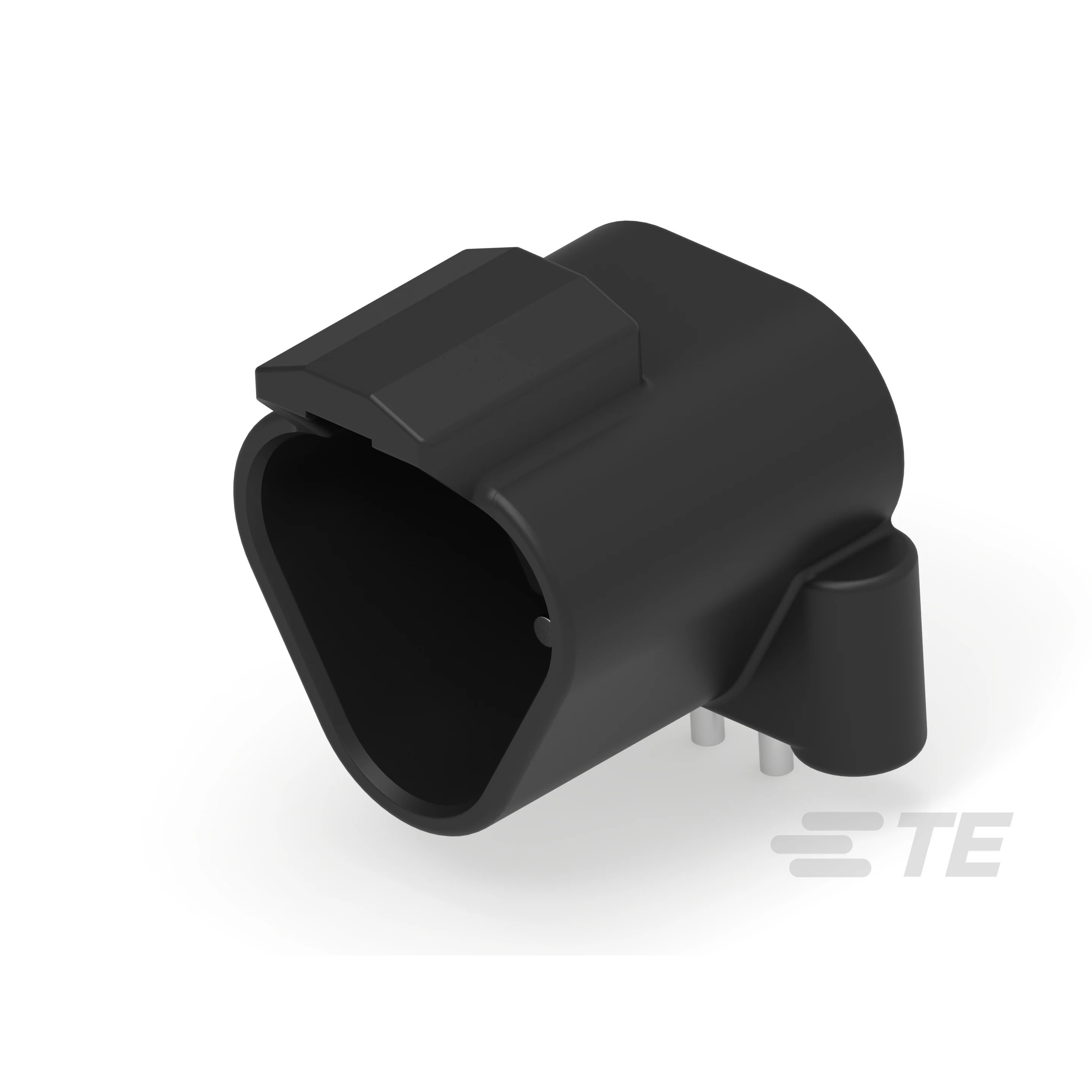

DTF13-3P-1939
ActiveTE Connectivity AMP Connectors
HDR, 3P, BLK, RA, SN/NI/CU, J193
DTF13-3P-1939
ActiveTE Connectivity AMP Connectors
HDR, 3P, BLK, RA, SN/NI/CU, J193
Description
General part information
DTF13-3P-1939
HDR, 3P, BLK, RA, SN/NI/CU, J193
Technical Specifications
Parameters and characteristics for this part
| Specification | DTF13-3P-1939 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.12 in |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating | 13 A |
| Fastening Type | Latch Holder |
| Insulation Color | Black |
| Insulation Height | 1.035 in |
| Insulation Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 3 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch - Mating | 0.17 in |
| Row Spacing - Mating | 0.17 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 250 V |
| Voltage Rating (Type) | DC |
