OP506W
ActiveTT Electronics/BI

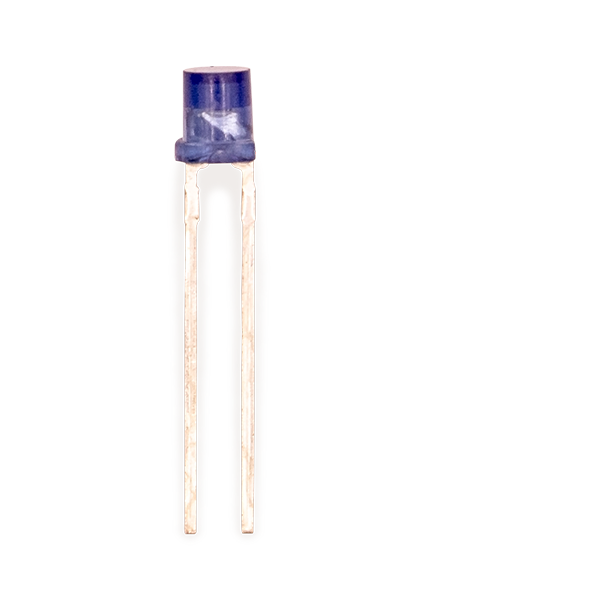

SENSOR PHOTO 935NM TOP VIEW T1
OP506W
ActiveTT Electronics/BI
SENSOR PHOTO 935NM TOP VIEW T1
Description
General part information
OP506W
SENSOR PHOTO 935NM TOP VIEW T1
Technical Specifications
Parameters and characteristics for this part
| Specification | OP506W |
|---|---|
| Current - Collector (Ic) (Max) | 0.0001 µA |
| Current - Dark (Id) (Max) | 100 nA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Top View |
| Package / Case | T-1 |
| Power - Max | 100 mW |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Wavelength | 935 nm |
