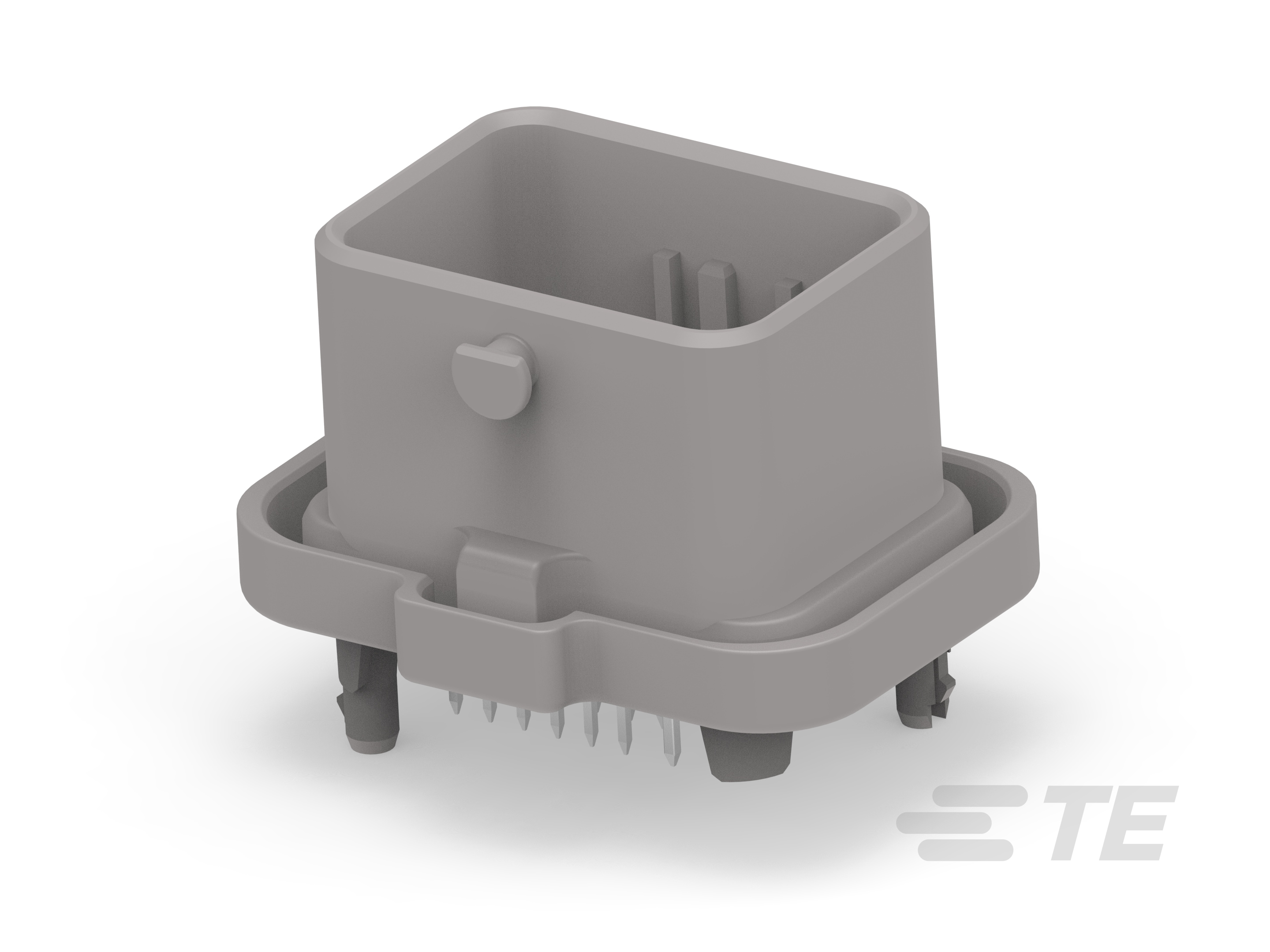

Specification	1801210-2

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	31.5 µin
Contact Length - Post	0.114 in
Contact Material	Copper Zinc
Contact Shape	Square, Rectangular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Gray
Insulation Material	Nylon 6/6, Polyamide (PA66), Glass Filled
Mounting Type	Through Hole
Number of Positions	32
Number of Positions Loaded	All
Number of Rows	4
Pitch - Mating	0.146 in
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	12 V
