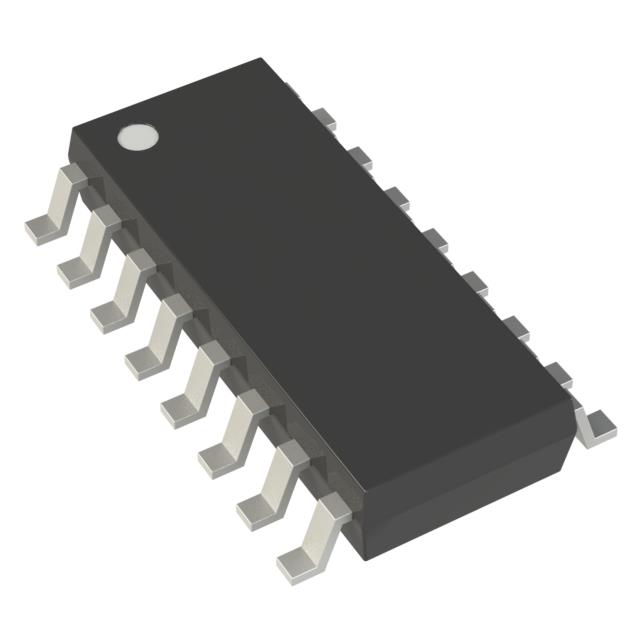

U211B-MFPY
ActiveMicrochip Technology
IC MOTOR DRIVER 13V-16.8V 16SO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
U211B-MFPY
ActiveMicrochip Technology
IC MOTOR DRIVER 13V-16.8V 16SO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | U211B-MFPY | U211B Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Function | Triac Controller | Triac Controller |
| Interface | On/Off | On/Off |
| Motor Type - AC, DC | AC, Induction | AC, Induction |
| Mounting Type | Surface Mount | Surface Mount, Through Hole |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -10 °C | -10 °C |
| Output Configuration | Pre-Driver - Triac | Pre-Driver - Triac |
| Package / Case | 16-SOIC | 16-SOIC, 18-DIP |
| Package / Case | - | 0.3 in |
| Package / Case | - | 7.62 mm |
| Package / Case [x] | 0.154 in | 0.154 in |
| Package / Case [y] | 3.9 mm | 3.9 mm |
| Supplier Device Package | 16-SOIC | 16-SOIC, 18-DIP |
| Technology | Bipolar | Bipolar |
| Voltage - Supply [Max] | 16.8 V | 16.8 V |
| Voltage - Supply [Min] | 13 V | 13 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
U211B Series
IC MOTOR DRIVER 13V-16.8V 16SO
| Part | Supplier Device Package | Mounting Type | Motor Type - AC, DC | Package / Case | Package / Case [x] | Package / Case [y] | Interface | Applications | Output Configuration | Function | Voltage - Supply [Max] | Voltage - Supply [Min] | Technology | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case [x] | Package / Case [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology U211B-MFP | 16-SOIC | Surface Mount | AC, Induction | 16-SOIC | 0.154 in | 3.9 mm | On/Off | General Purpose | Pre-Driver - Triac | Triac Controller | 16.8 V | 13 V | Bipolar | 100 °C | -10 °C | ||
Microchip Technology U211B-M | 18-DIP | Through Hole | AC, Induction | 18-DIP | On/Off | General Purpose | Pre-Driver - Triac | Triac Controller | 16.8 V | 13 V | Bipolar | 100 °C | -10 °C | 0.3 in | 7.62 mm | ||
Microchip Technology U211B-MY | 18-DIP | Through Hole | AC, Induction | 18-DIP | On/Off | General Purpose | Pre-Driver - Triac | Triac Controller | 16.8 V | 13 V | Bipolar | 100 °C | -10 °C | 0.3 in | 7.62 mm | ||
Microchip Technology U211B-MFPY | 16-SOIC | Surface Mount | AC, Induction | 16-SOIC | 0.154 in | 3.9 mm | On/Off | General Purpose | Pre-Driver - Triac | Triac Controller | 16.8 V | 13 V | Bipolar | 100 °C | -10 °C | ||
Microchip Technology U211B-MFPG3 | 16-SOIC | Surface Mount | AC, Induction | 16-SOIC | 0.154 in | 3.9 mm | On/Off | General Purpose | Pre-Driver - Triac | Triac Controller | 16.8 V | 13 V | Bipolar | 100 °C | -10 °C | ||
Microchip Technology U211B-MY 71 | 18-DIP | Through Hole | AC, Induction | 18-DIP | On/Off | General Purpose | Pre-Driver - Triac | Triac Controller | 16.8 V | 13 V | Bipolar | 100 °C | -10 °C | 0.3 in | 7.62 mm |
Description
General part information
U211B Series
Motor Driver Bipolar On/Off 16-SOIC
