STSPIN233

Active

STMicroelectronics

MOTOR DRIVER/CONTROLLER, THREE PHASE DC BRUSHLESS, 1.8 V TO 10 V, 1 OUTPUT, 1.3 A, 16 PINS, VFQFPN-E… MORE

Deep-Dive with AI

Search across all available documentation for this part.

Documents +17

STSPIN233

Active

STMicroelectronics

MOTOR DRIVER/CONTROLLER, THREE PHASE DC BRUSHLESS, 1.8 V TO 10 V, 1 OUTPUT, 1.3 A, 16 PINS, VFQFPN-E… MORE

Deep-Dive with AI

Documents +17

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STSPIN233

Applications	DC Motors, General Purpose
Current - Output / Channel [custom]	1.3 A
Interface	Logic
Load Type	Inductive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (3)

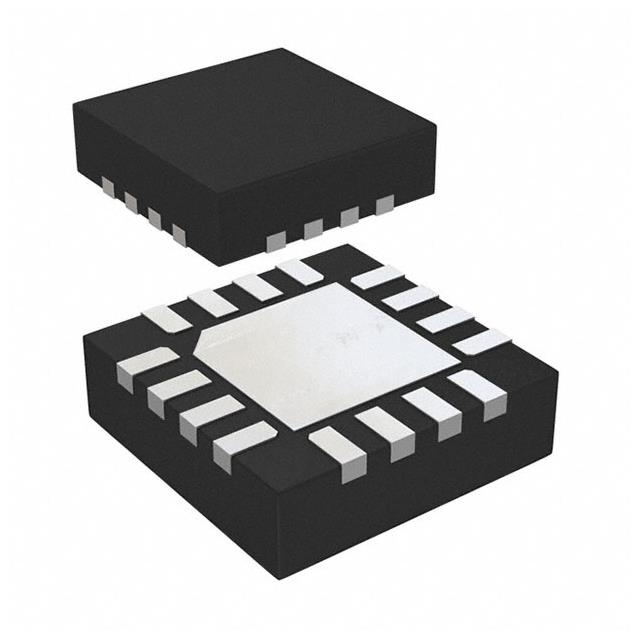

Package / Case	16-VFQFN Exposed Pad
Rds On (Typ)	400 mOhm
Supplier Device Package	16-VFQFPN (3x3)
Technology	Power MOSFET
Voltage - Load [Max]	10 V
Voltage - Load [Min]	1.8 V
Voltage - Supply [Max]	5 V
Voltage - Supply [Min]	0 V

STSPIN233 Series

Low voltage three phase and three sense motor driver

Part	Technology	Interface	Load Type	Mounting Type	Supplier Device Package	Package / Case	Output Configuration	Voltage - Load [Min]	Voltage - Load [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Output / Channel [custom]	Applications	Rds On (Typ)
STMicroelectronics STSPIN233	Power MOSFET	Logic	Inductive	Surface Mount	16-VFQFPN (3x3)	16-VFQFN Exposed Pad	Half Bridge (3)	1.8 V	10 V	150 °C	-40 °C	0 V	5 V	1.3 A	DC Motors, General Purpose	400 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.25
		10	$ 1.66
		25	$ 1.52
		100	$ 1.36
		250	$ 1.28
		500	$ 1.24
		1000	$ 1.20
	Digi-Reel®	1	$ 2.25
		10	$ 1.66
		25	$ 1.52
		100	$ 1.36
		250	$ 1.28
		500	$ 1.24
		1000	$ 1.20
	Tape & Reel (TR)	4000	$ 1.14
		8000	$ 1.12
Newark	Each (Supplied on Cut Tape)	1	$ 2.25
		10	$ 1.63
		25	$ 1.53
		50	$ 1.43
		100	$ 1.36
		250	$ 1.29
		500	$ 1.24
		1000	$ 1.20

Description

General part information

STSPIN233 Series

The STSPIN233 device integrates a triple half-bridge low RDS(ON)power stage in a small VFQFPN 3 x 3 x 1.0 mm package ideal for small and space constrained applications.

The device is designed to operate in battery-powered scenarios and can be forced in a zero consumption state, allowing a significant increase in battery life.

The STSPIN233 is supporting three shunt sensing topology.
