AXA-NFRTP
ActivePasternack
ADPN-FEMALE TO RP-TNC PLUG
AXA-NFRTP
ActivePasternack
ADPN-FEMALE TO RP-TNC PLUG
Description
General part information
AXA-NFRTP

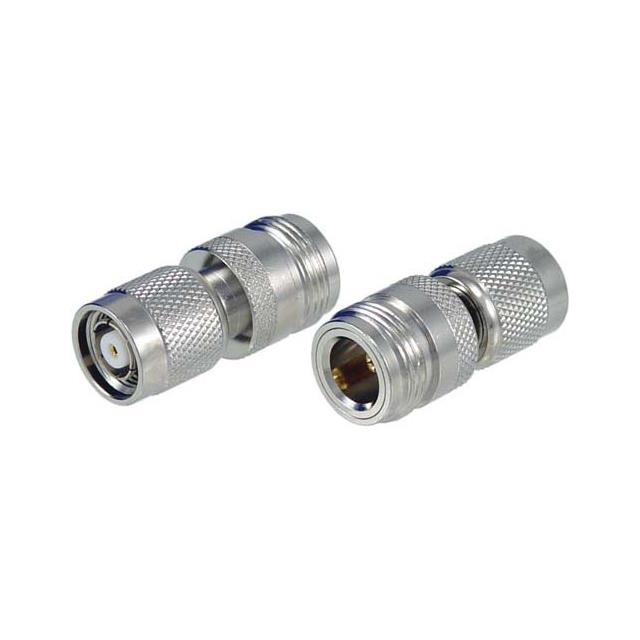

Adapter Coaxial Connector RP-TNC Plug, Female Socket To N Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | AXA-NFRTP |
|---|---|
| Adapter Series | RP-TNC to N |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | RP-TNC Plug, Female Socket |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | N Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 11 GHz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.15 dB |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
