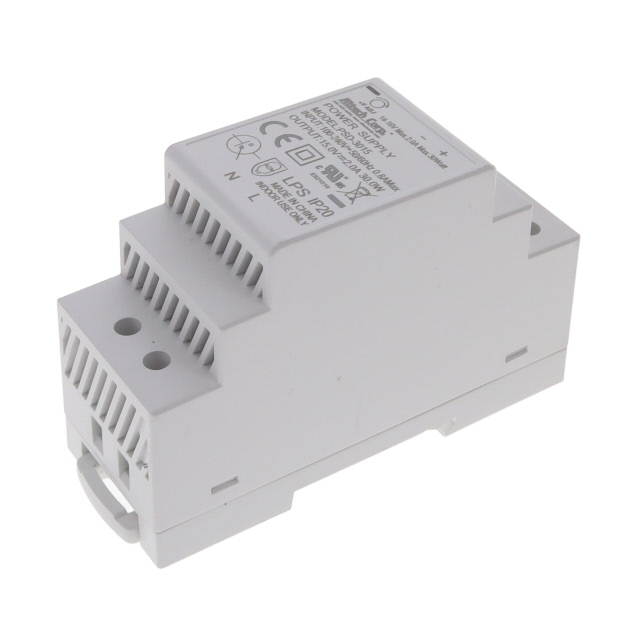

Specification	PSD-3015

AC Voltage - Input (Max)	264 VAC
AC Voltage - Input (Min)	90 VAC
Applications	Industrial, ITE (Commercial)
Approval Agency	cURus, CE, CB
Current - Output (Max)	2 A
Efficiency	89 %
Features	Universal Input, Adjustable Output
Input Type	AC
Number of Outputs	1
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-20 °C
Power (Watts)	30 W
Size / Dimension Height	3.54 in
Size / Dimension Length	2.28 in
Size / Dimension Width	1.38 in
Standard Number	UL 508, 60950-1, 62368-1
Voltage - Isolation	3 kV
Voltage - Output 1	15 V
