FN251-8-07
ObsoleteTE Connectivity AMP Connectors

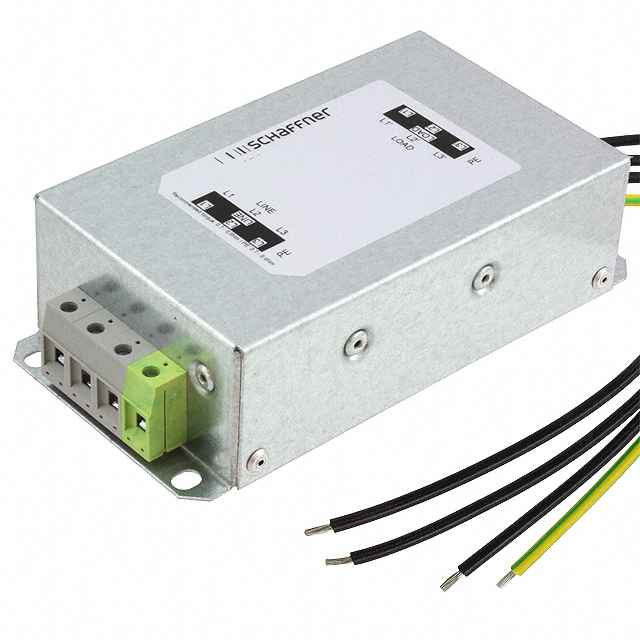

LINE FILTER 440VAC 8A CHASS MNT
FN251-8-07
ObsoleteTE Connectivity AMP Connectors
LINE FILTER 440VAC 8A CHASS MNT
Description
General part information
FN251-8-07
Three Phase (Delta) EMC/EMI Line Filter 8 A 440V DC ~ 60Hz Two Stage Terminal Block, Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | FN251-8-07 |
|---|---|
| Applications | General Purpose |
| Approval Agency | UR |
| Configuration | Two Stage |
| Current | 8 A |
| Filter Subtype | Delta |
| Filter Type | Three Phase |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 0 Hz |
| Inductance | 4.2 mH |
| Mounting Type | Chassis Mount |
| Termination Style | Terminal Block, Wire Leads |
| Voltage - Rated AC | 440 V |
