Description
General part information

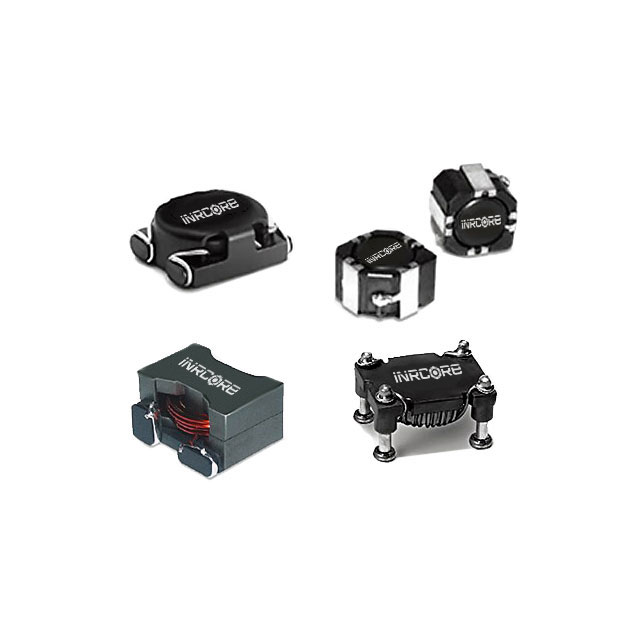

PL8181
17.6 µH Unshielded Toroidal Inductor 10.9 A 12.3mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PL8181 |
|---|---|
| Current Rating | 10.9 A |
| DC Resistance (DCR) (Max) | 12.3 mOhm |
| Height - Seated (Max) | 0.51 in |
| Inductance | 17.6 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 1.275 in |
| Size / Dimension Width | 1.065 in |
| Type | Toroidal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
