RM1A23A25
ActiveCARLO GAVAZZI
SSR RELAY SPST-NO 25A 24-265V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RM1A23A25
ActiveCARLO GAVAZZI
SSR RELAY SPST-NO 25A 24-265V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RM1A23A25 |
|---|---|
| Approval Agency | EAC, CSA, UKCA, CE, CCC, cURus |
| Load Current | 25 A |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Output Type | AC, Zero Cross |
| Package / Case | Hockey Puck |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 280 VAC/DC, 48 V |
| Voltage - Input [Min] | 20 VAC/DC, 22 VDC |
| Voltage - Load [Max] | 265 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 56.05 | |
| 10 | $ 53.25 | |||
| 50 | $ 50.45 | |||
| 100 | $ 48.76 | |||
Description
General part information
RM1A23A25

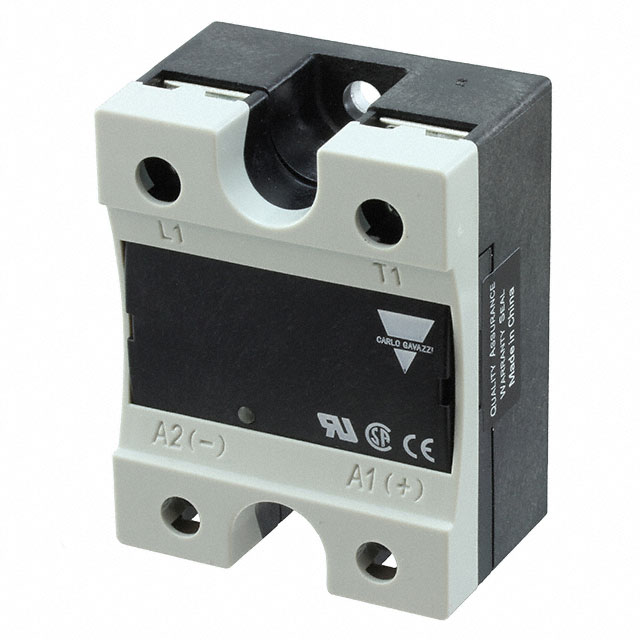

Solid State SPST-NO (1 Form A) Hockey Puck
Documents
Technical documentation and resources
