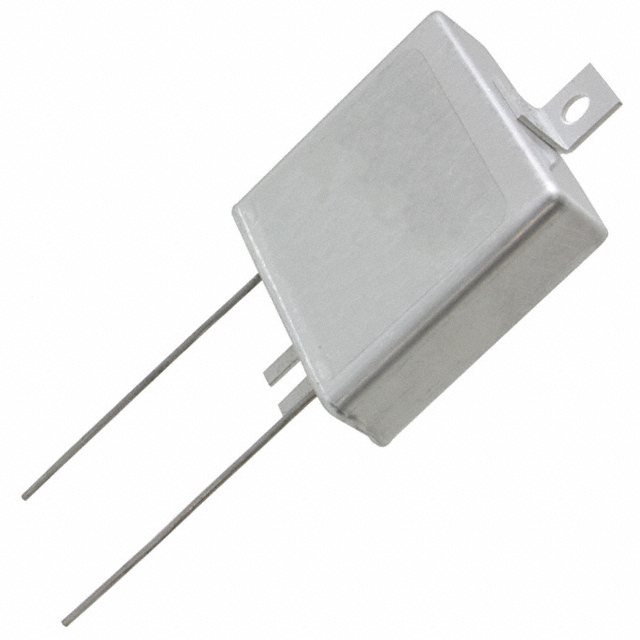

MLP221M300EK0A
ActiveCornell Dubilier Knowles
CAP ALUM 220UF 20% 300V FLATPACK
MLP221M300EK0A
ActiveCornell Dubilier Knowles
CAP ALUM 220UF 20% 300V FLATPACK
Description
General part information
MLP221M300EK0A
220 µF 300 V Aluminum Electrolytic Capacitors FlatPack, Tabbed 597mOhm 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MLP221M300EK0A |
|---|---|
| Applications | General Purpose |
| Capacitance | 220 µF |
| ESR (Equivalent Series Resistance) | 597 mOhm |
| Height - Seated (Max) | 12.7 mm |
| Lead Spacing | 1 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Tabbed, FlatPack |
| Size / Dimension Length | 1.5 in |
| Size / Dimension Width | 1.75 in |
| Tolerance | 20 % |
| Voltage - Rated | 300 VAC |
