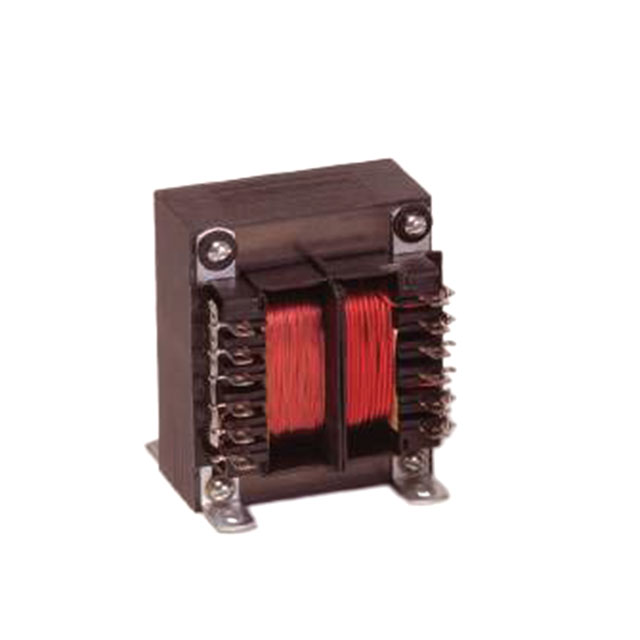

A41-80-28

Active

Signal Transformer

POWER TRANSFORMERS 50\60 HZ, LAMINATED TRANSFORMER

Search across all available documentation for this part.

Active

Signal Transformer

POWER TRANSFORMERS 50\60 HZ, LAMINATED TRANSFORMER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A41-80-28	A41 Series

Center Tap	False	False, True
Current - Output (Max)	-	4.3 A
Current - Output (Max)	-	8.6 A
Current - Output (Max)	-	0.13 - 1.25 A
Current - Output (Max) [custom]	2.8 A	2.8 A
Current - Output (Max) [custom]	5.6 A	5.6 A
Height - Seated (Max) [Max] [z]	76.2 mm	58.7 - 76.2 mm
Mounting Type	Chassis Mount	Chassis Mount
Power - Max [Max]	80 VA	25 - 80 VA
Primary Winding(s)	Dual	Dual
Secondary Winding(s)	Dual	Dual
Size / Dimension [x]	63.5 mm	63.5 - 79.4 mm
Size / Dimension [y]	64.3 mm	54.4 - 64.3 mm
Termination Style	Solder, Quick Connect	Wire Leads, Solder, Quick Connect
Type	Laminated Core	Laminated Core
Voltage - Isolation	4000 Vrms	4000 Vrms
Voltage - Primary	115 V, 230 V	115 - 230 V
Voltage - Secondary (Full Load)	14 V, 28 V	14 - 28 V
Voltage - Secondary (Full Load)	-	5 V
Voltage - Secondary (Full Load)	-	10 - 15 V
Weight	2.8 lbs	1.3 - 2.8 lbs
Weight	1.3 kg	1.3 - 725.7 g

Power Transformers 50\60 Hz, Laminated Transformer w/ lead wires

Part	Weight	Weight	Voltage - Primary	Type	Size / Dimension [y]	Size / Dimension [x]	Voltage - Isolation	Mounting Type	Power - Max [Max]	Height - Seated (Max) [Max] [z]	Current - Output (Max) [Max] [custom]	Current - Output (Max) [Max] [custom]	Voltage - Secondary (Full Load) [custom]	Voltage - Secondary (Full Load) [custom]	Secondary Winding(s)	Primary Winding(s)	Termination Style	Current - Output (Max) [custom]	Current - Output (Max) [custom]	Voltage - Secondary (Full Load)	Current - Output (Max)
Signal Transformer A41-43-10L	725.7 g	1.6 lbs	115 V, 230 V	Laminated Core	54.4 mm	79.4 mm	4000 Vrms	Chassis Mount	43 VA	68.2 mm	4.3 A	8.6 A	5 V	10 V	Dual	Dual	Wire Leads
Signal Transformer A41-80-28	1.3 kg	2.8 lbs	115 V, 230 V	Laminated Core	64.3 mm	63.5 mm	4000 Vrms	Chassis Mount	80 VA	76.2 mm					Dual	Dual	Quick Connect, Solder	2.8 A	5.6 A	14 V, 28 V
Signal Transformer A41-25-515	589.7 g	1.3 lbs	115 V, 230 V	Laminated Core	54.4 mm	71.4 mm	4000 Vrms	Chassis Mount	25 VA	58.7 mm			5 V	15 V	Dual	Dual	Quick Connect, Solder				0.13 A, 1.25 A
