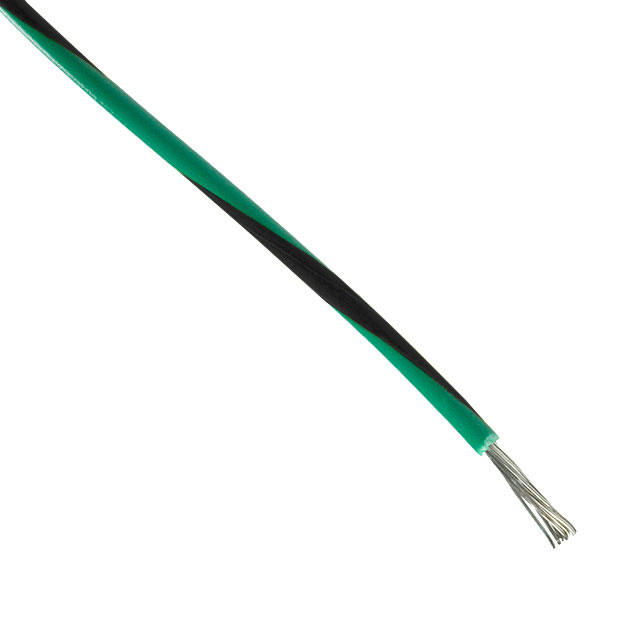

Specification	44A0111-20-50-US

Cable Type	Up, Hook, Dual Wall
Conductor Material	Tinned, Copper
Conductor Strand Count	19
Conductor Strand Gauge	32 AWG
Jacket (Insulation) Diameter	0.055 in
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF)
Jacket (Insulation) Thickness	0.0031 in
Jacket Color	Black Stripe, Green
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-65 °C
Qualification	MIL-C-27500, MIL-W-81044
Voltage	600 V
Wire Gauge	20 AWG

44A0111 Series

...

Part	Conductor Strand Gauge	Conductor Strand Count	Conductor Material	Length	Jacket Color	Jacket (Insulation) Diameter	Operating Temperature (Min)	Operating Temperature (Max)	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Wire Gauge	Qualification	Cable Type	Voltage	Length	Spool Size
TE Connectivity AMP Connectors 44A0111-24-91-MX	36	19	Copper Tinned	10000 ft	Brown Stripe White	0.04 in	-65 °C	150 °C	Polyvinylidene Fluoride (PVDF)	0.0031 in	24 AWG	MIL-C-27500 MIL-W-81044	Dual Wall Hook Up	600 V
TE Connectivity AMP Connectors 44A0111-24-2
TE Connectivity AMP Connectors 44A0111-26-97-US	38 AWG	19	Copper Tinned		Violet Stripe White	0.034 in	-65 °C	150 °C	Polyvinylidene Fluoride (PVDF)	0.0031 in	26 AWG	MIL-C-27500 MIL-W-81044	Dual Wall Hook Up	600 V
TE Connectivity AMP Connectors 44A0111-26-4-US	38 AWG	19	Copper Tinned		Yellow	0.034 in	-65 °C	150 °C	Polyvinylidene Fluoride (PVDF)	0.0031 in	26 AWG	MIL-C-27500 MIL-W-81044	Dual Wall Hook Up	600 V
TE Connectivity AMP Connectors 44A0111-14-8-MX	27 AWG	19	Copper Tinned		Gray	0.089 in	-65 °C	150 °C	Polyvinylidene Fluoride (PVDF)	0.0031 in	14 AWG	MIL-C-27500 MIL-W-81044	Dual Wall Hook Up	600 V	Enter Number of Feet in Order Quantity	2000 ft
TE Connectivity AMP Connectors 44A0111-20-4-MX	32 AWG	19	Copper Tinned	5000 ft	Yellow	0.055 in	-65 °C	150 °C	Polyvinylidene Fluoride (PVDF)	0.055 in	20 AWG	MIL-C-27500 MIL-W-81044	Dual Wall Hook Up	600 V
TE Connectivity AMP Connectors 44A0111-16-9-L030	29 AWG	19	Copper Tinned		White	0.072 in	-65 °C	150 °C	Polyvinyl Fluoride (PVF)	0.0031 in	16 AWG	MIL-C-27500 MIL-W-81044	Hook-Up	600 V
TE Connectivity AMP Connectors 44A0111-24-92-MX	36	19	Copper Tinned		Red Stripe White	0.04 in	-65 °C	150 °C	Polyvinylidene Fluoride (PVDF)	0.0031 in	24 AWG	MIL-C-27500 MIL-W-81044	Dual Wall Hook Up	600 V
TE Connectivity AMP Connectors 44A0111-16-5-L183	29 AWG	19	Copper Tinned	5000 ft	Green	0.072 in	-65 °C	150 °C	Polyvinyl Fluoride (PVF)	0.0031 in	16 AWG	MIL-C-27500 MIL-W-81044	Dual Wall Hook Up	600 V
TE Connectivity AMP Connectors 44A0111-14-2-MX	27 AWG	19	Copper Tinned		Red	0.089 in	-65 °C	150 °C	Irradiated Polyvinylidene Fluoride (PVDF)	0.0031 in	14 AWG	MIL-C-27500 MIL-W-81044	Dual Wall Hook Up	600 V	Enter Number of Feet in Order Quantity	3399 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

44A0111-20-50-US | Datasheet
