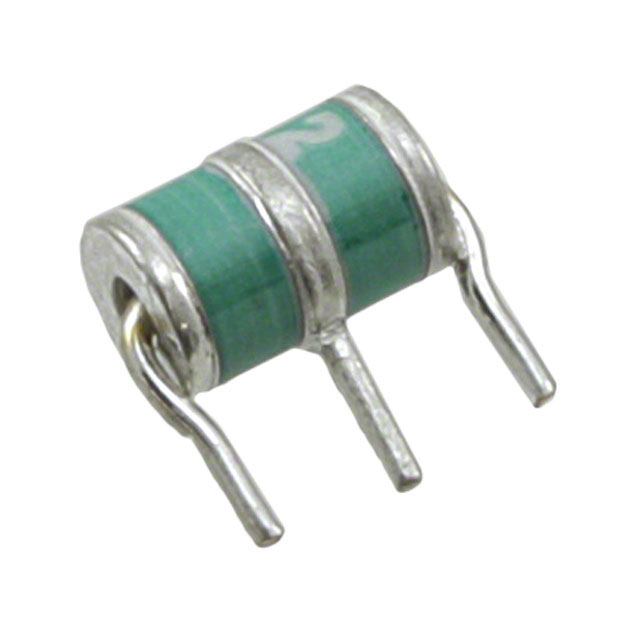

2036 Series

...

Part	Impulse Discharge Current	Fail Short	Mounting Type	Tolerance	Package Leads	Package Name	Number of Poles	Voltage - DC Spark Over (Nom)	Package / Case
Bourns Inc. 2036-23-B2FLF	10000 A	Yes	Through Hole	20 %	3 Leads	Axial Cylinder	3	230 V
Bourns Inc. 2036-30-B	10000 A	No	Through Hole	20 %	3 Leads	Axial Cylinder	3	300 V
Bourns Inc. 2036-30-SM	10000 A	No	Surface Mount	20 %			3	300 V	3-SMD Cylinder Square End
Bourns Inc. 2036-09-B3FLF	10000 A	Yes	Through Hole	20 %	3 Leads	Axial Cylinder	3	90 V
Bourns Inc. 2036-20-SM-RPLF	10000 A	No	Surface Mount	20 %			3	200 V	3-SMD Cylinder Square End
Bourns Inc. 2036-40-BLF	10000 A	No	Through Hole	20 %	3 Leads	Axial Cylinder	3	400 V
Bourns Inc. 2036-35-B2	10000 A	No	Through Hole	20 %	3 Leads	Axial Cylinder	3	350 V
Bourns Inc. 2036-23-BLF	10000 A	No	Through Hole	20 %	3 Leads	Axial Cylinder	3	230 V
Bourns Inc. 2036-15-C2LF	10000 A	No	Through Hole	20 %	3 Leads	Axial Cylinder	3	150 V
Bourns Inc. 2036-07-A	10000 A	No	User Defined	20 %			3	75 V	3 Terminal Cylinder No Lead
