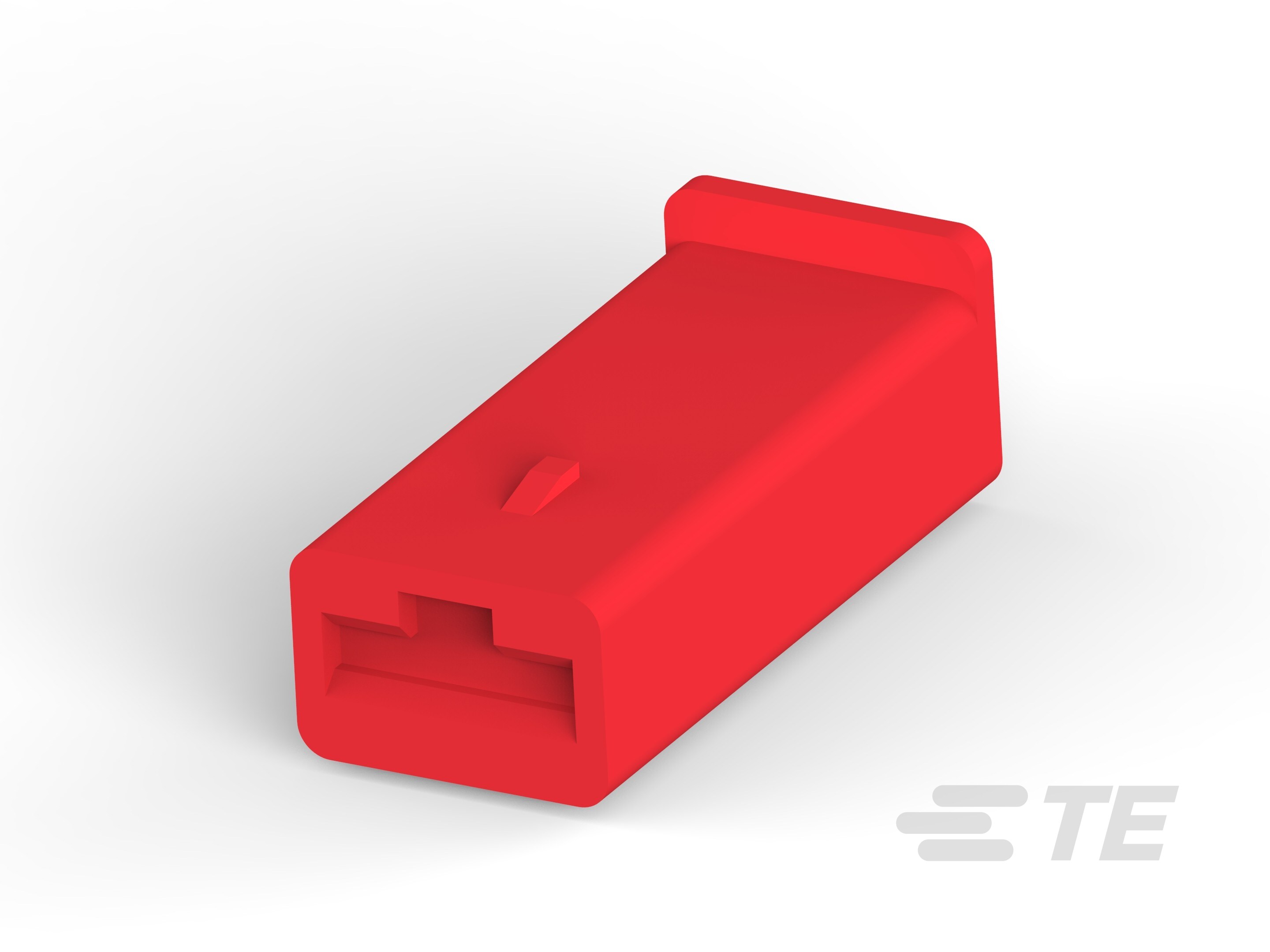

Specification	180905-1

Color	Red
For Use With/Related Products	Quick Connects, 0.250" (6.35mm) Quick Connects
Gender	Female, Receptacle
Material	Nylon 6, 6, Polyamide (PA66)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	1
Related Product Length	0.25 in
Style	Housing
Terminal Size	0.25 in
Terminal Type	Disconnect, Quick Connect

FASTIN-FASTON 250 Series

...

Part	Insulation Diameter (Min)	Insulation Diameter (Max)	Gender	Tab Thickness	Length - Overall	Insulation	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Termination	Mounting Type	Terminal Type	Tab Width	Tab Length	Contact Material	Contact Finish	Style	Related Product Length	For Use With/Related Products	Color	Number of Positions	Terminal Size	Material	Note	Stacking Direction
TE Connectivity AMP Connectors 170051-1	0.085 in	0.135 in	Male	0.032 in	1.016 in	Non-Insulated	14 AWG	20.5 AWG	Crimp	Free Hanging (In-Line)	Standard	0.25 in	0.551 in	Brass
TE Connectivity AMP Connectors 180351-8	0.134 in	0.201 in	Female	0.032 in	0.748 in	Non-Insulated	10 AWG	12 AWG	Crimp	Free Hanging (In-Line)	Standard	0.25 in	0.303 in	Brass	Tin
TE Connectivity AMP Connectors 480054-4			Female Receptacle							Free Hanging (In-Line)	Disconnect Quick Connect					Housing	0.25 in	0.250" (6.35mm) Quick Connects Quick Connects	Black	1	0.25 in
TE Connectivity AMP Connectors 280080-4			Male	0.032 in	1.102 in	Non-Insulated	10 AWG	11 AWG	Crimp	Free Hanging (In-Line)	Standard	0.25 in	0.618 in	Phosphor Bronze	Tin
TE Connectivity AMP Connectors 42663-2			Female	0.032 in	0.915 in	Non-Insulated	12 AWG	16 AWG	Crimp	Free Hanging (In-Line)	Standard	0.312 in	0.38 in	Brass	Tin
TE Connectivity AMP Connectors 160458-2	0.122 in	0.161 in	Male	0.032 in		Non-Insulated	14 AWG	18 AWG	Crimp	Free Hanging (In-Line)	Standard	0.25 in		Phosphor Bronze	Tin
TE Connectivity AMP Connectors 1989880-1	0.118 in	0.169 in	Female	0.032 in	0.677 in	Non-Insulated	14 AWG	17 AWG	Crimp	Free Hanging (In-Line)	Standard	0.25 in	0.303 in	Brass
TE Connectivity AMP Connectors 172130-4			Female Receptacle							Free Hanging (In-Line)	Disconnect Quick Connect					Housing	0.25 in	0.250" (6.35mm) Quick Connects Quick Connects	Green	2	0.25 in	Nylon	Contacts Not Included	Perpendicular
TE Connectivity AMP Connectors 160928-4	0.055 in	0.091 in	Female	0.032 in	0.756 in	Non-Insulated	17 AWG	20.5 AWG	Crimp	Free Hanging (In-Line)	Standard	0.25 in	0.305 in	Phosphor Bronze	Tin
TE Connectivity AMP Connectors 5-160446-5	0.118 in	0.161 in	Female	0.032 in	0.756 in	Non-Insulated	14 AWG	17 AWG	Crimp	Free Hanging (In-Line)	Standard	0.25 in	0.305 in	Brass	Tin
