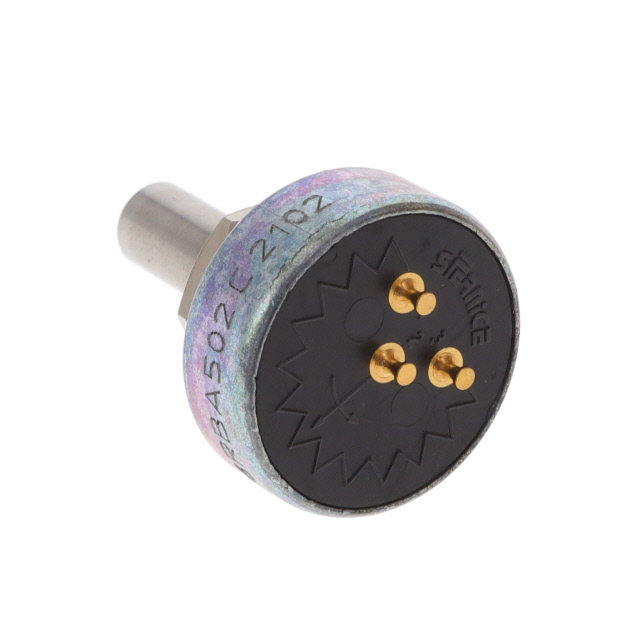

ECS78RBA502
Resistive Sensor Rotary Position Shaft Solder Turret
Technical Specifications
Parameters and characteristics for this part
| Specification | ECS78RBA502 |
|---|---|
| Actuator Type | Shaft |
| For Measuring | Rotary Position |
| Linearity Tolerance | 2 % |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Output | Resistive |
| Output Signal | Clockwise Increase |
| Package / Case | Module, Round Shaft |
| Resistance | 5 kOhm |
| Resistance Tolerance (%) | 20 % |
| Rotation Angle - Electrical, Mechanical (Maximum) | 360 ° |
| Rotation Angle - Electrical, Mechanical (Minimum) | 0 ° |
| Rotation Angle - Electrical, Mechanical (Mode) | Continuous |
| Technology | Resistive |
| Termination Style | Solder Turret |
