L000950-01
ActiveTE Connectivity AMP Connectors

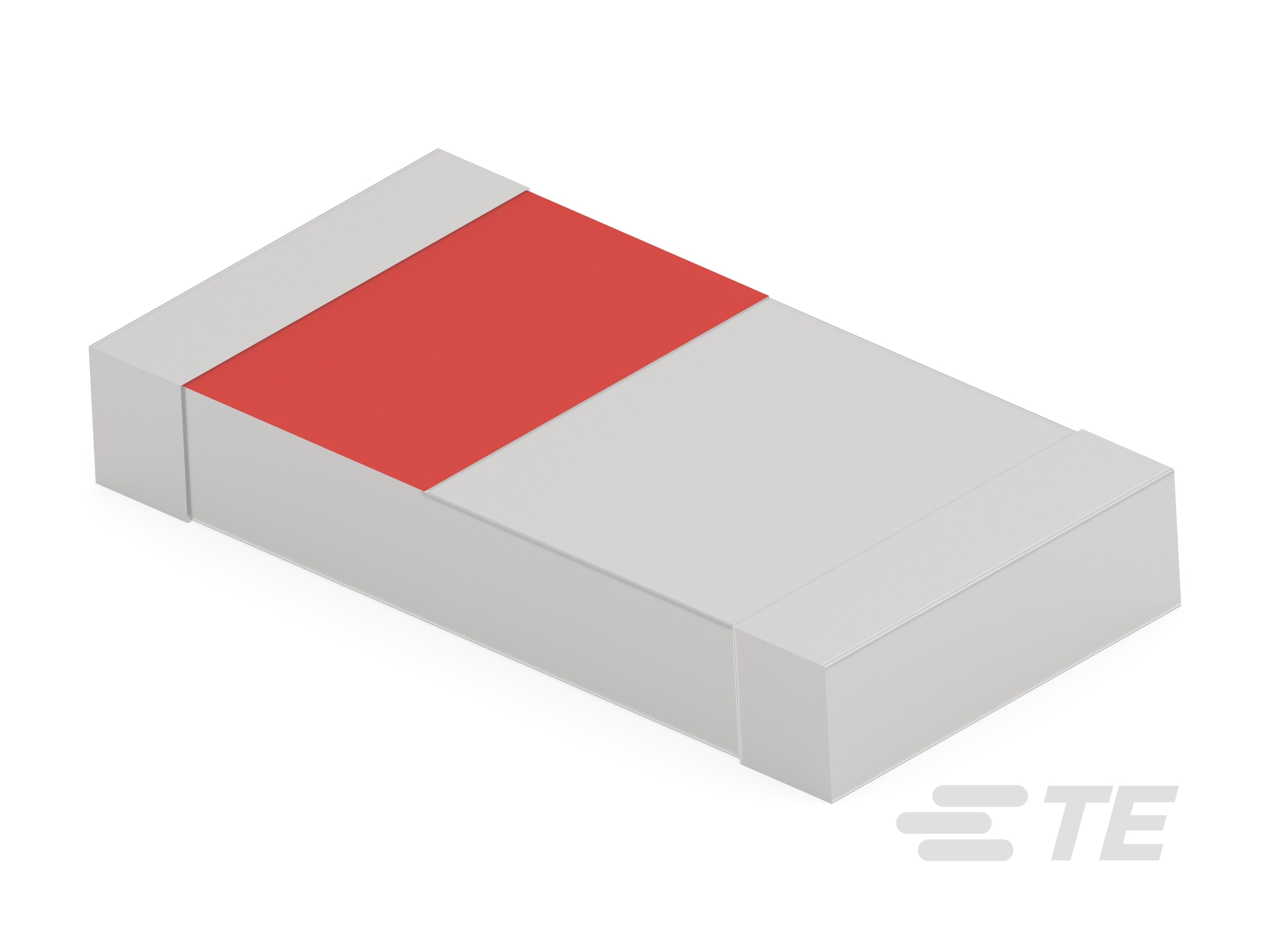

CHIP ANT, WI-FI 6E, 3.2X1.6MM
L000950-01
ActiveTE Connectivity AMP Connectors
CHIP ANT, WI-FI 6E, 3.2X1.6MM
Description
General part information
L000950-01
Patch Antenna, Single Band, Wi-Fi, Internal/Embedded Mount, Surface Mount, SMD, Omnidirectional, Single Port, 0 < 3 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | L000950-01 |
|---|---|
| Antenna Type | Chip |
| Applications | Wi-Fi, Zigbee™, Bluetooth, 802.11a/b/g/n/ac, WLAN |
| Frequency (Center/Band) | 5.5GHz, 2.442GHz, 6.525GHz |
| Frequency (Center/Band) - 1 | 2.442 GHz |
| Frequency (Center/Band) - 2 | 5.5 GHz |
| Frequency (Center/Band) - 3 | 6.525 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 2.484 GHz |
| Frequency Range (Band 1) Minimum | 2.4 GHz |
| Frequency Range (Band 2) Maximum | 5.85 GHz |
| Frequency Range (Band 2) Minimum | 5.15 GHz |
| Frequency Range (Band 3) Maximum | 7.125 GHz |
| Frequency Range (Band 3) Minimum | 5.925 GHz |
| Gain | -0.3 dBi, 0.7 dBi, 0.8 dBi |
| Height (Max) | 0.02 in |
| Mounting Type | Surface Mount |
| Number of Bands | 3 |
| RF Family/Standard | WiFi, Bluetooth |
| Termination | Solder |
| VSWR | 3.2, 1.5, 2 |
