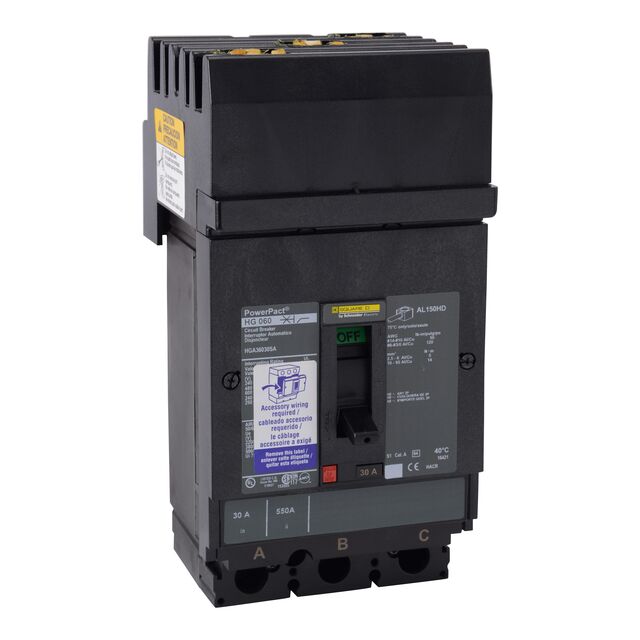

HGA36025
ActiveSCHNEIDER ELECTRIC
MOLDED CASE CIRCUIT BREAKER 600V
HGA36025
ActiveSCHNEIDER ELECTRIC
MOLDED CASE CIRCUIT BREAKER 600V
Description
General part information
HGA36025
Circuit Breaker Thermal Magnetic 25A 690 V AC DC Toggle DIN Rail
Technical Specifications
Parameters and characteristics for this part
| Specification | HGA36025 |
|---|---|
| Actuator Type | Toggle |
| Approval Agency | UL, CSA |
| Breaker Type | Thermal Magnetic |
| Current Rating | 25 A |
| Illumination | None |
| Mounting Type | DIN Rail |
| Number of Poles | 3 |
| Voltage Rating - AC | 690 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
