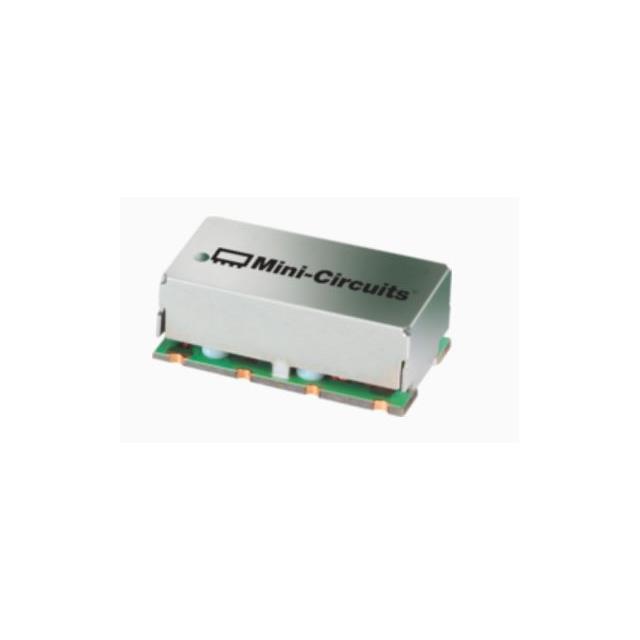

SXBP-375+
ActiveMini-Circuits
RF FILTER BAND PASS 375MHZ 8SMD
SXBP-375+
ActiveMini-Circuits
RF FILTER BAND PASS 375MHZ 8SMD
Description
General part information
SXBP-375+
375MHz Center Frequency Band Pass RF Filter (Radio Frequency) 90MHz Bandwidth 1.8dB 8-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | SXBP-375+ |
|---|---|
| Bandwidth | 90 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 375 MHz |
| Height (Max) | 0.27 in |
| Insertion Loss | 1.8 dB |
| Mounting Type | Surface Mount |
| Package / Case | No Lead, 8-SMD |
| Size / Dimension Length | 0.74 in |
| Size / Dimension Width | 0.44 in |
