HG2458-09P
ObsoletePasternack

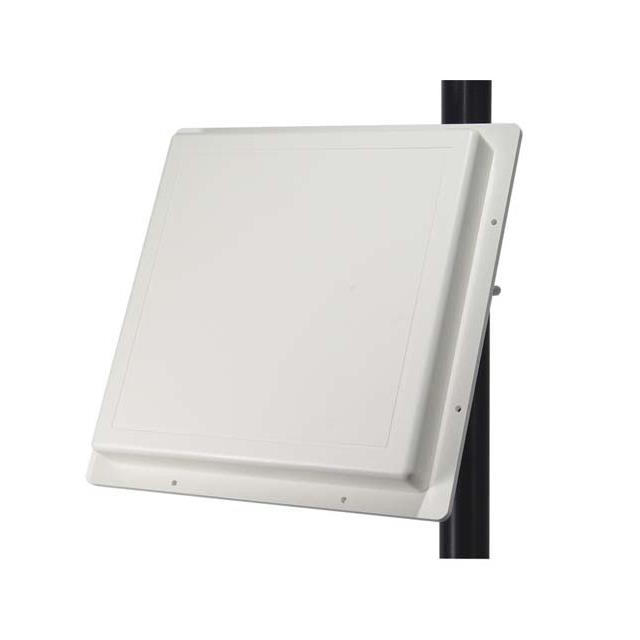

ANTFLAT PNL 2.4/5GHZ 9DBI
HG2458-09P
ObsoletePasternack
ANTFLAT PNL 2.4/5GHZ 9DBI
Description
General part information
HG2458-09P
2.45GHz, 5.487GHz 802.11a/b/g, Bluetooth, ISM, Wi-Fi, WiMax, WLAN Flat Patch RF Antenna 2.4GHz ~ 2.5GHz, 5.125GHz ~ 5.85GHz 9dBi, 6dBi N Type Female Mast Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG2458-09P |
|---|---|
| Antenna Type | Flat Patch |
| Applications | ISM, Wi-Fi, WiMax, Bluetooth, 802.11a/b/g, WLAN |
| Frequency (Band) | 5.487 GHz |
| Frequency (Center) | 2.45 GHz |
| Frequency Group | SHF, UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Band 1) Maximum | 2.5 GHz |
| Frequency Range (Band 1) Minimum | 2.4 GHz |
| Frequency Range (Band 2) Maximum | 5.85 GHz |
| Frequency Range (Band 2) Minimum | 5.125 GHz |
| Gain | 6 dBi, 9 dBi |
| Height (Max) | 1 in |
| Mounting Type | Mast Mount |
| Number of Bands | 2 |
| Power - Max | 1 VA |
| RF Family/Standard | Bluetooth, WiFi, General ISM |
| Termination | N Type Female |
| VSWR | 1.5 |
