MB89P475-102P-G-SH-JNE1
UnknownInfineon Technologies
IC MCU 8BIT 16KB OTP 48DIP
Deep-Dive with AI
Search across all available documentation for this part.
MB89P475-102P-G-SH-JNE1
UnknownInfineon Technologies
IC MCU 8BIT 16KB OTP 48DIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MB89P475-102P-G-SH-JNE1 |
|---|---|
| Connectivity | Serial I/O, UART/USART |
| Core Processor | F²MC-8L |
| Core Size | 8-Bit |
| Data Converters [custom] | 8 |
| Data Converters [custom] | 10 |
| Mounting Type | Through Hole |
| Number of I/O | 29 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | External |
| Package / Case | 15.24 mm, 0.6 in |

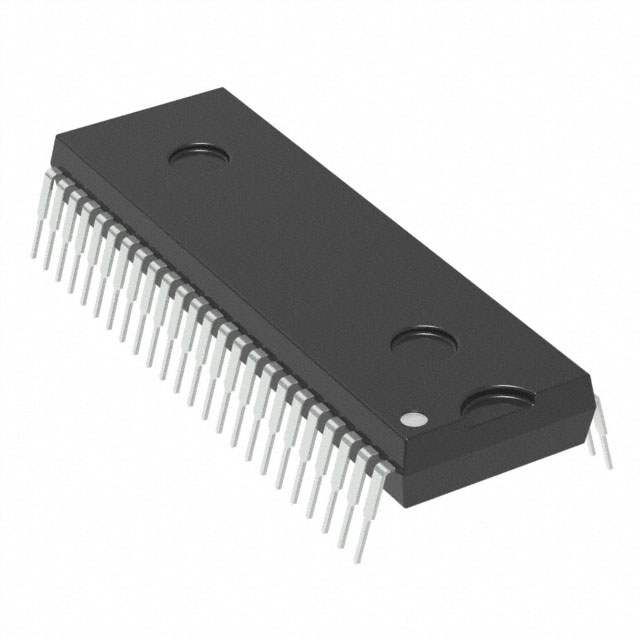

| Package / Case | 48-DIP |
| Peripherals | POR, PWM, WDT |
| Program Memory Size | 16 KB |
| Program Memory Type | OTP |
| RAM Size | 512 |
| Supplier Device Package | 48-DIP |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 3.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MB89P475 Series
F²MC-8L F²MC-8L MB89470 Microcontroller IC 8-Bit 12.5MHz 16KB (16K x 8) OTP 48-DIP
