9007C66B1S22
ActiveSCHNEIDER ELECTRIC

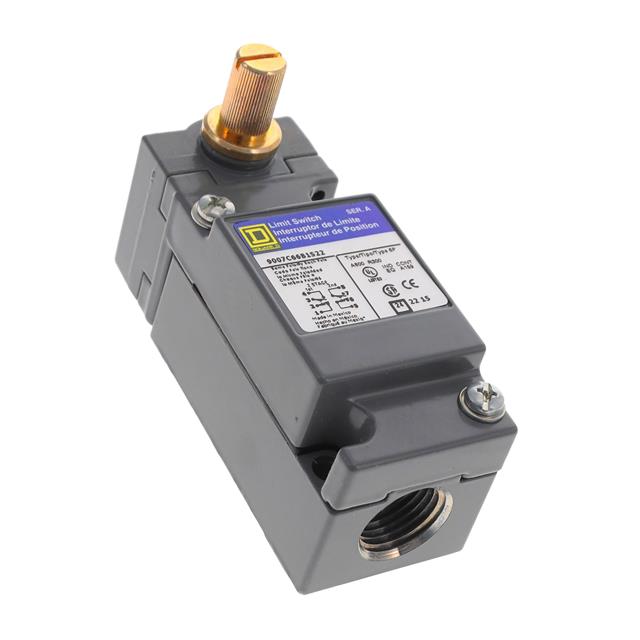

LIMIT SWITCH, ROTARY LEVER, SPDT-DB, 10 A, 600 V, 9007 SERIES
9007C66B1S22
ActiveSCHNEIDER ELECTRIC
LIMIT SWITCH, ROTARY LEVER, SPDT-DB, 10 A, 600 V, 9007 SERIES
Description
General part information
9007C66B1S22
Switch DPDT (DB/DM) Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 9007C66B1S22 |
|---|---|
| Actuator Type | No Lever, Side Rotary |
| Circuit | DPDT (DB/DM) |
| Current Rating | 10 A |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -29 °C |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
