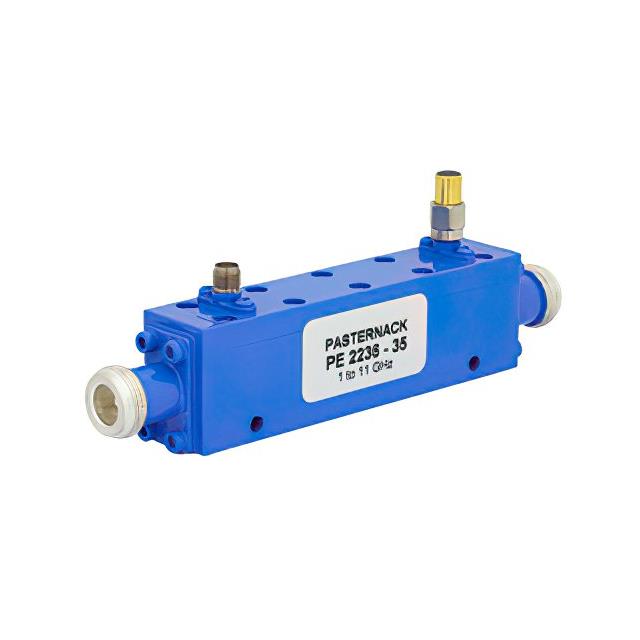

PE2236-35
ActivePasternack
DIRECTIONAL 35 DB N COUPLER FROM
PE2236-35
ActivePasternack
DIRECTIONAL 35 DB N COUPLER FROM
Description
General part information
PE2236-35
RF Directional Coupler General Purpose 1GHz ~ 11GHz 35 ± 1.5dB 600W Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PE2236-35 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 35 dB |
| Coupling Factor Tolerance | 1.5 dB |
| Frequency (Max) | 11 GHz |
| Frequency (Min) | 1 GHz |
| Insertion Loss | 0.2 dB |
| Package / Case | Module |
| Package Name | Module |
| Power - Max | 600 W |
