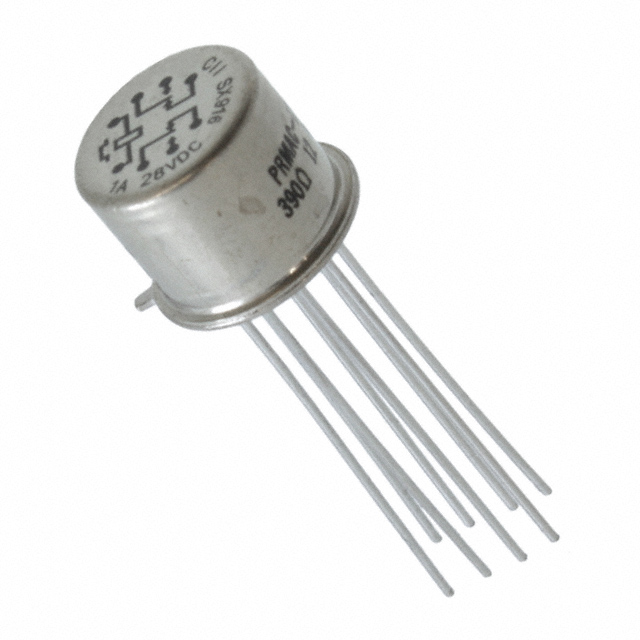

PRMAC-12X
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY GEN PURPOSE DPDT 1A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PRMAC-12X | PRMAC Series |
|---|---|---|
| Coil Current | 30.7 mA | 17 - 100 mA |
| Coil Resistance | 390 Ohms | 50 - 1560 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 12 VDC | 5 - 26.5 VDC |
| Contact Form | DPDT (2 Form C) | DPDT (2 Form C) |
| Contact Material | - | Silver Palladium (AgPd), Gold (Au) |
| Contact Rating (Current) | 1 A | 1 A |
| Features | - | Diode |
| Load - Max Switching | - | 28 - 115 W |
| Mounting Type | Through Hole | Through Hole |
| Must Operate Voltage | 7 VDC | 2.7 - 14.2 VDC |
| Must Release Voltage | 0.63 VDC | 0.22 - 0.93 VDC |
| Operate Time | 2 ms | 2 ms |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 1.5 ms | 1.5 - 4 ms |
| Seal Rating | Sealed - Hermetically | Sealed - Hermetically |
| Switching Voltage | 28 VDC | 28 - 115 VDC |
| Termination Style | PC Pin | PC Pin |
PRMAC Series
RELAY GEN PURPOSE DPDT 1A 26.5V
| Part | Contact Form | Coil Type | Contact Material | Switching Voltage | Coil Resistance | Mounting Type | Operate Time | Relay Type | Must Operate Voltage | Seal Rating | Contact Rating (Current) | Coil Voltage | Termination Style | Load - Max Switching | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Features | Must Release Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine PRMAC-26XS | DPDT (2 Form C) | Non Latching | Gold (Au), Silver Palladium (AgPd) | 28 VDC, 115 VAC | 1560 Ohms | Through Hole | 2 ms | General Purpose | 14.2 VDC | Sealed - Hermetically | 1 A | 26.5 VDC | PC Pin | 28 W, 115 VA | 1.5 ms | 125 °C | -65 ░C | 17 mA | ||
TE Connectivity Aerospace, Defense and Marine PRMACD-5YW | DPDT (2 Form C) | Non Latching | Gold (Au), Silver Palladium (AgPd) | 28 VDC, 115 VAC | 50 Ohms | Through Hole | 2 ms | General Purpose | 2.7 VDC | Sealed - Hermetically | 1 A | 5 VDC | PC Pin | 28 W, 115 VA | 4 ms | 125 °C | -65 ░C | 100 mA | Diode | 0.22 VDC |
TE Connectivity Aerospace, Defense and Marine PRMAC-26X | DPDT (2 Form C) | Non Latching | 28 VDC | 1560 Ohms | Through Hole | 2 ms | General Purpose | 14.2 VDC | Sealed - Hermetically | 1 A | 26.5 VDC | PC Pin | 1.5 ms | 125 °C | -65 ░C | 17 mA | ||||
TE Connectivity Aerospace, Defense and Marine PRMAC-12X | DPDT (2 Form C) | Non Latching | 28 VDC | 390 Ohms | Through Hole | 2 ms | General Purpose | 7 VDC | Sealed - Hermetically | 1 A | 12 VDC | PC Pin | 1.5 ms | 125 °C | -65 ░C | 30.7 mA | 0.63 VDC | |||
TE Connectivity Aerospace, Defense and Marine PRMAC-18Y | DPDT (2 Form C) | Non Latching | Gold (Au), Silver Palladium (AgPd) | 28 VDC, 115 VAC | 880 Ohms | Through Hole | 2 ms | General Purpose | 10.5 VDC | Sealed - Hermetically | 1 A | 18 VDC | PC Pin | 28 W, 115 VA | 1.5 ms | 125 °C | -65 ░C | 20.5 mA | 0.93 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 69.14 | |
| 10 | $ 65.50 | |||
| 25 | $ 61.86 | |||
| 50 | $ 58.22 | |||
| 100 | $ 54.59 | |||
Description
General part information
PRMAC Series
General Purpose Relay DPDT (2 Form C) Through Hole
