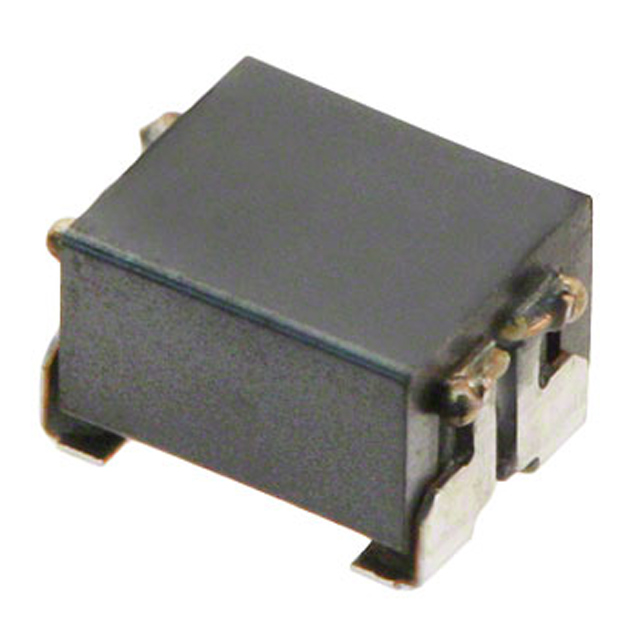

B82789C0104N002
ActiveEPCOS - TDK Electronics
CMC 100UH 150MA 2LN SMD
B82789C0104N002
ActiveEPCOS - TDK Electronics
CMC 100UH 150MA 2LN SMD
Description
General part information
B82789C0104N002
100 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 150mA DCR 1.5Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | B82789C0104N002 |
|---|---|
| Current Rating (Max) | 150 mA |
| DC Resistance (DCR) (Max) | 1.5 Ohm |
| Filter Type | Signal Line |
| Height (Max) | 0.118 in |
| Inductance | 100 µH |
| Lead Count | 4 |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Horizontal |
| Package Leads | 4 Leads |
| Package Name | Horizontal |
| Size / Dimension Length | 0.205 in |
| Size / Dimension Width | 0.126 in |
| Voltage Rating - AC | 42 V |
| Voltage Rating - DC | 80 VDC |
