Description
General part information

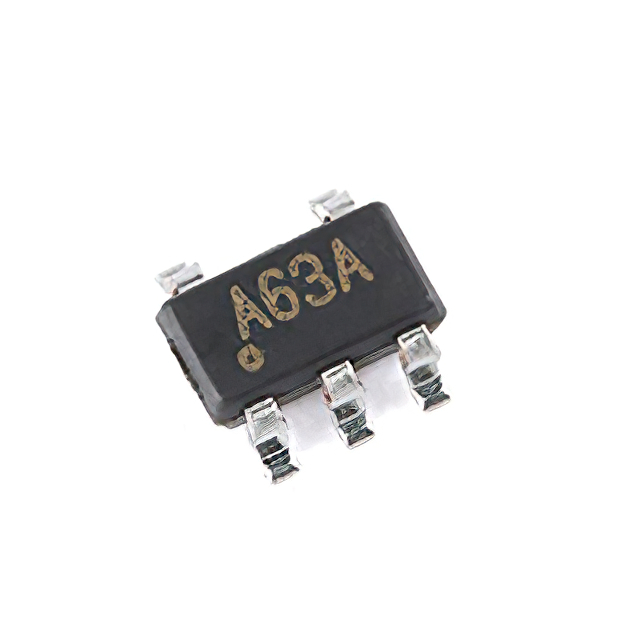

LM321MF
General Purpose Amplifier 1 Circuit SOT-23-5
Technical Specifications
Parameters and characteristics for this part
| Specification | LM321MF |
|---|---|
| Amplifier Type | General Purpose |
| Current - Input Bias | 45 nA |
| Current - Output / Channel | 40 mA |
| Current - Supply | 660 µA |
| Gain Bandwidth Product | 1 MHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Name | SOT-23-5 |
| Voltage - Input Offset | 2 mV |
| Voltage - Supply Span (Max) | 32 V |
| Voltage - Supply Span (Min) | 3 V |
