OPB710
ActiveTT Electronics/BI
SNSR OPTO TRANS 6.35MM REFL TO72
OPB710
ActiveTT Electronics/BI
SNSR OPTO TRANS 6.35MM REFL TO72
Description
General part information
OPB710

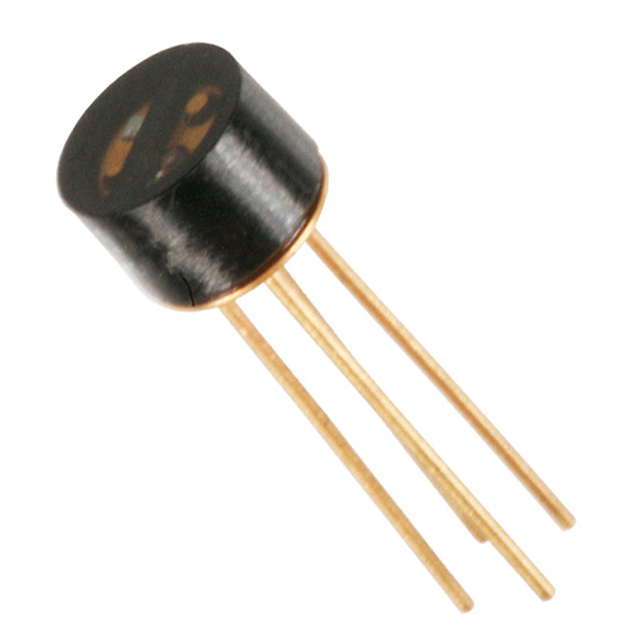

Reflective Optical Sensor 0.250" (6.35mm) TO-72
Technical Specifications
Parameters and characteristics for this part
| Specification | OPB710 |
|---|---|
| Current - Collector (Ic) (Max) | 25 mA |
| Current - DC Forward (If) (Max) | 50 mA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Output Type | Phototransistor |
| Package / Case | TO-72 |
| Sensing Distance | 0.25 " |
| Sensing Method | Reflective |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
