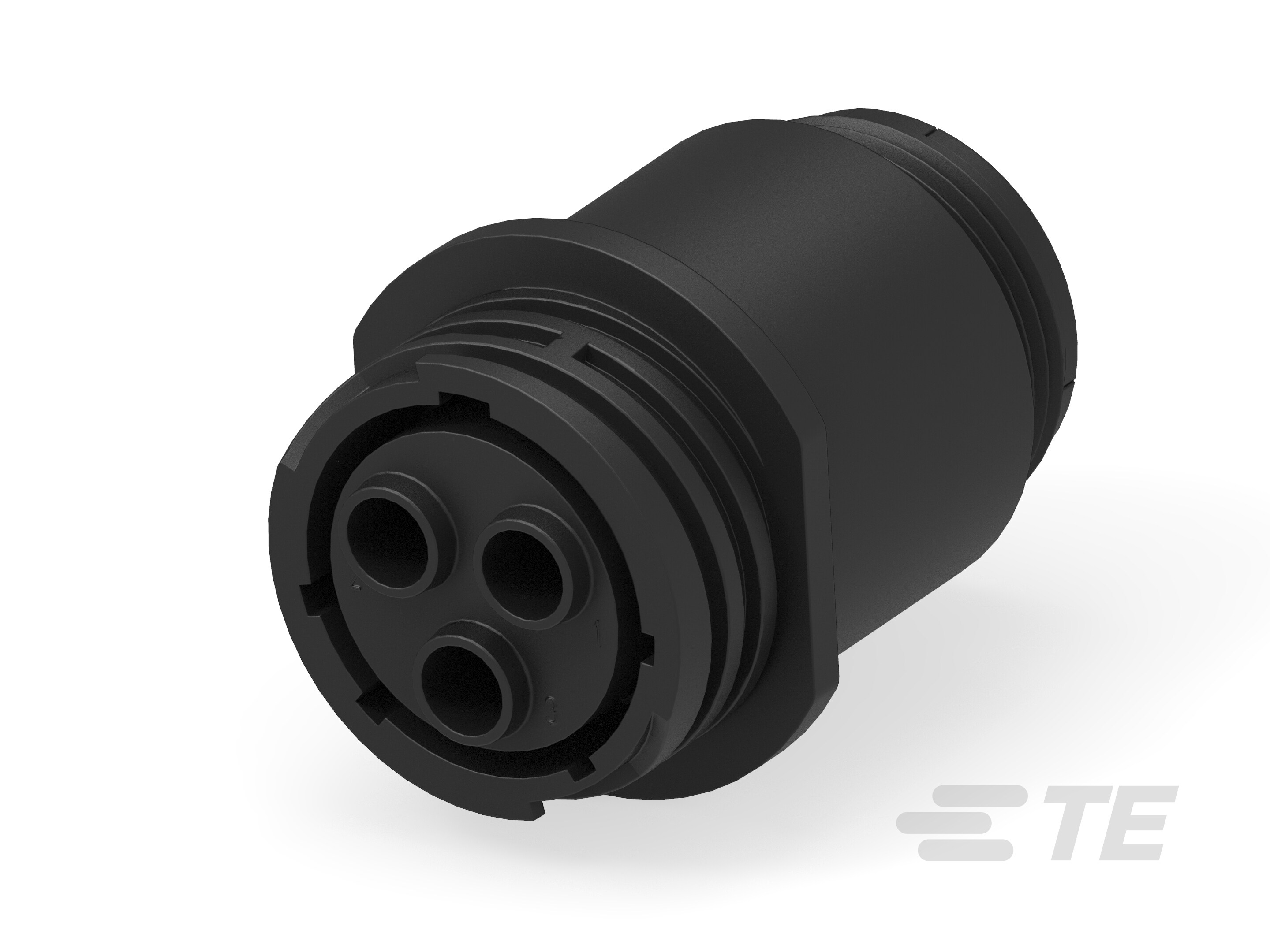

Specification	796112-1

Connector Type	Receptacle Housing
Contact Size Options	8 Power
Contact Type	Crimp
Fastening Type	Threaded
Housing Color	Black
Ingress Protection Description	Dust Tight, Water Resistant, Waterproof
Ingress Protection IP Rating	IP67, IP65
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Orientation	Keyed
Position Types	Power
Shell Material	Nylon, Polyamide (PA)
Shell Size - Insert Length	17 mm
Shell Size - Insert Width	3 mm
Shielding	Unshielded
Type	For Female Sockets
