Description
General part information

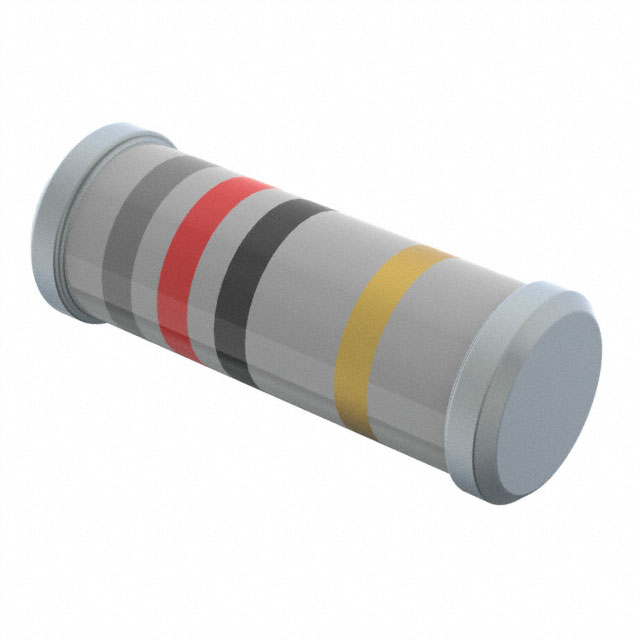

MMP100JR-82R
82 Ohms ±5% 1W Chip Resistor MELF, 0207 Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MMP100JR-82R |
|---|---|
| Composition | Metal Film |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0207, MELF |
| Package Name | MELF |
| Power (Watts) | 1 W |
| Resistance | 82 Ohm |
| Size / Dimension Diameter | 0.087 in |
| Size / Dimension Length | 0.232 in |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
