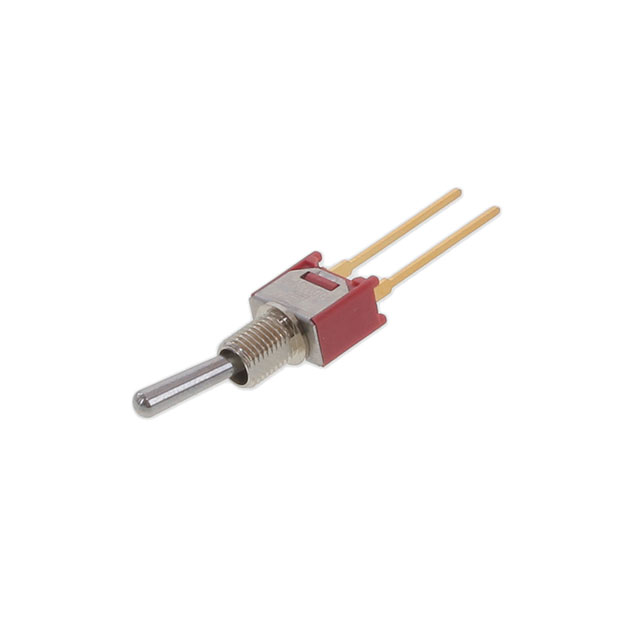

200MSP6T1B1M5RE

Active

E-Switch

SWITCH TOGGLE SPST 0.4VA 20V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TOGGLE SPST 0.4VA 20V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	200MSP6T1B1M5RE	200MSP6 Series

Actuator Length [x]	9.4 mm	9.4 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	10-48	10-48
Circuit	SPST	SPST
Current Rating (Amps)	0.4 VA	0.4 VA
Electrical Life	30000 Cycles	30000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	4.95 mm	4.95 mm
Switch Function	On-Off	On-Off
Termination Style	Wire Wrap	PC Pin, Wire Wrap
Voltage Rating - AC	20 V	20 V
Voltage Rating - DC	20 V	20 V

SWITCH TOGGLE SPST 0.4VA 20V

Part	Actuator Type	Voltage Rating - AC	Actuator Length [x]	Illumination	Bushing Thread	Switch Function	Voltage Rating - DC	Circuit	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Features	Current Rating (Amps)	Actuator Material	Electrical Life
E-Switch 200MSP6T1B1VS2RE	Standard Round	20 V	9.4 mm	Non-Illuminated	10-48	On-Off	20 V	SPST	PC Pin	-30 ░C	85 °C	4.95 mm	Epoxy Sealed Terminals	0.4 VA	Brass, Chrome Plated	30000 Cycles
E-Switch 200MSP6T1B1VS2REH	Standard Round	20 V	9.4 mm	Non-Illuminated	10-48	On-Off	20 V	SPST	PC Pin	-30 ░C	85 °C	4.95 mm	Epoxy Sealed Terminals	0.4 VA	Brass, Chrome Plated	30000 Cycles
E-Switch 200MSP6T1B1M2RE	Standard Round	20 V	9.4 mm	Non-Illuminated	10-48	On-Off	20 V	SPST	PC Pin	-30 ░C	85 °C	4.95 mm	Epoxy Sealed Terminals	0.4 VA	Brass, Chrome Plated	30000 Cycles
E-Switch 200MSP6T1B1M5RE	Standard Round	20 V	9.4 mm	Non-Illuminated	10-48	On-Off	20 V	SPST	Wire Wrap	-30 ░C	85 °C	4.95 mm	Epoxy Sealed Terminals	0.4 VA	Brass, Chrome Plated	30000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPST Panel Mount
