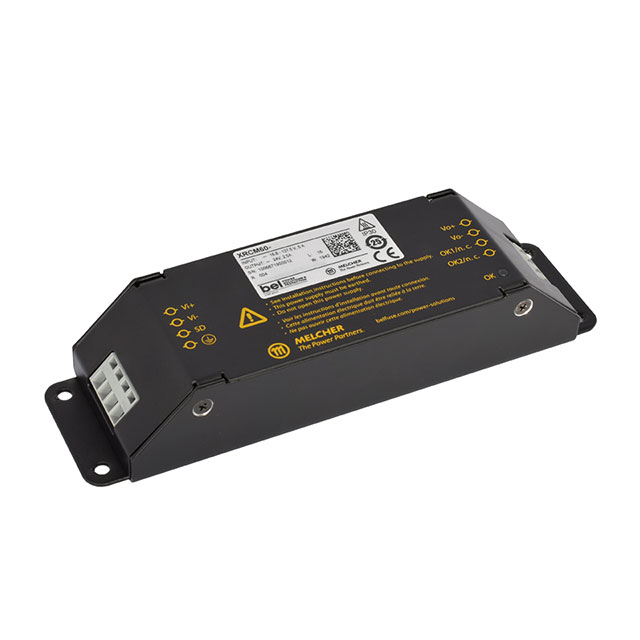

12RCM60-12
ActiveBel Fuse Inc.
ISOLATED DC/DC CONVERTERS - CHASSIS MOUNT POWER SUPPLY;12RCM60-12DQF;DC-DC;IN 8TO35V;OUT 12V;5A;60W;160X50X30MM;CONVECTION COOLING;
12RCM60-12
ActiveBel Fuse Inc.
ISOLATED DC/DC CONVERTERS - CHASSIS MOUNT POWER SUPPLY;12RCM60-12DQF;DC-DC;IN 8TO35V;OUT 12V;5A;60W;160X50X30MM;CONVECTION COOLING;
Description
General part information
12RCM60-12
Enclosed, Conformal Coated DC DC Converter 1 Output 12V 5A 36V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | 12RCM60-12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cCSAus, CE |
| Current - Output (Max) | 5 A |
| Efficiency | 88 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 60 W |
| Size / Dimension Height | 1.26 in |
| Size / Dimension Length | 6.77 in |
| Size / Dimension Width | 1.97 in |
| Standard Number | 62368-1 |
| Type | Enclosed, Conformal Coated |
| Voltage - Input (Max) | 36 V |
| Voltage - Input (Min) | 8 V |
| Voltage - Isolation | 4200 VDC |
| Voltage - Output 1 | 12 V |
