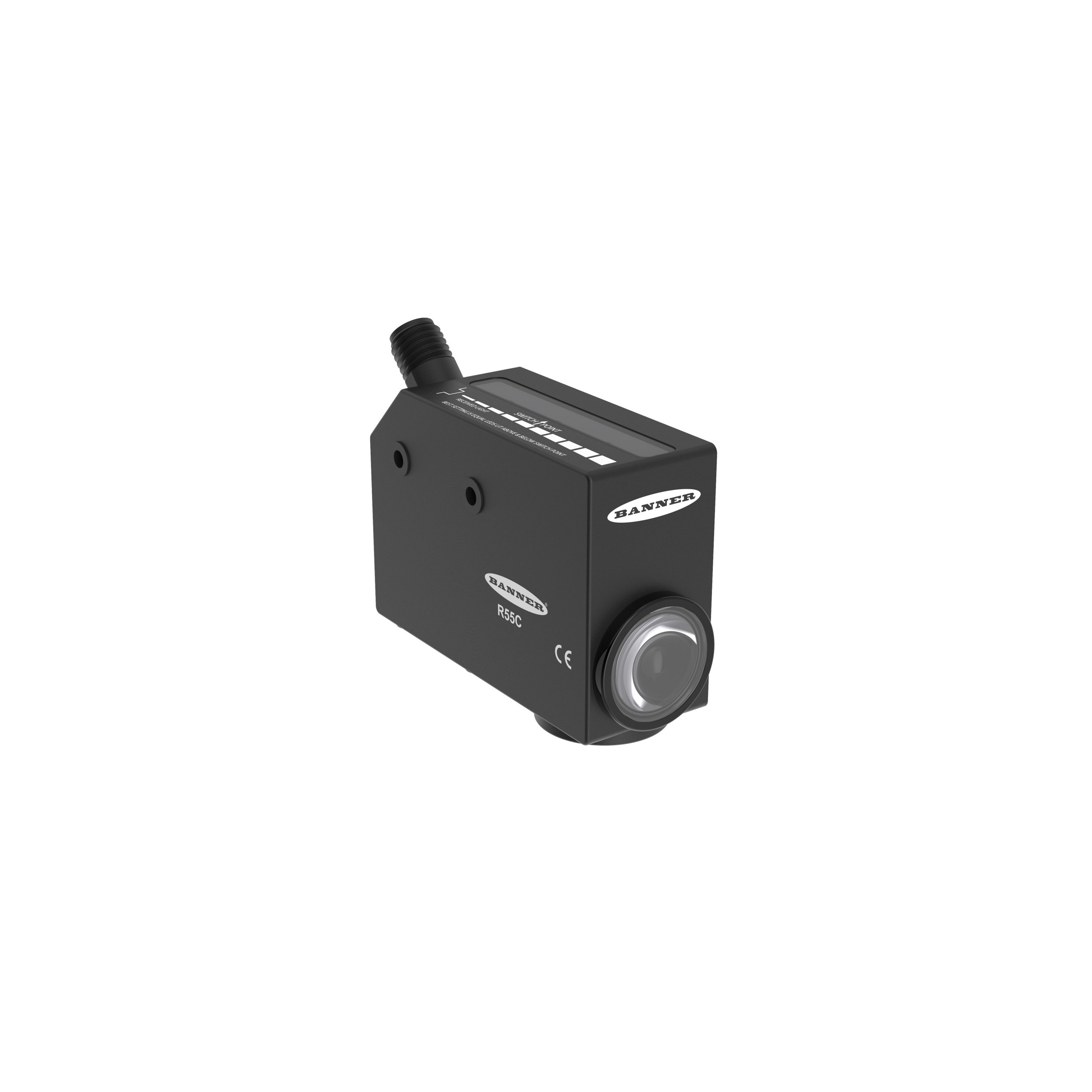

Specification	R55CG1Q

Adjustment Type	Adjustable, Potentiometer
Connection Method	Connector
Ingress Protection	IP67, IEC, NEMA 6P
Light Source	Green LED
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-10 °C
Output Configuration	Light-ON - Selectable, Dark-ON, PNP, Selectable, Light-ON, PNP - Dark-ON, NPN
Response Time	50 µs
Sensing Distance	0.394 "
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	10 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources
