EZ-400-NMH-PL-X-LC
ActivePasternack
N MALE CONNECTOR CRIMP/NON-SOLDE
EZ-400-NMH-PL-X-LC
ActivePasternack
N MALE CONNECTOR CRIMP/NON-SOLDE
Description
General part information
EZ-400-NMH-PL-X-LC

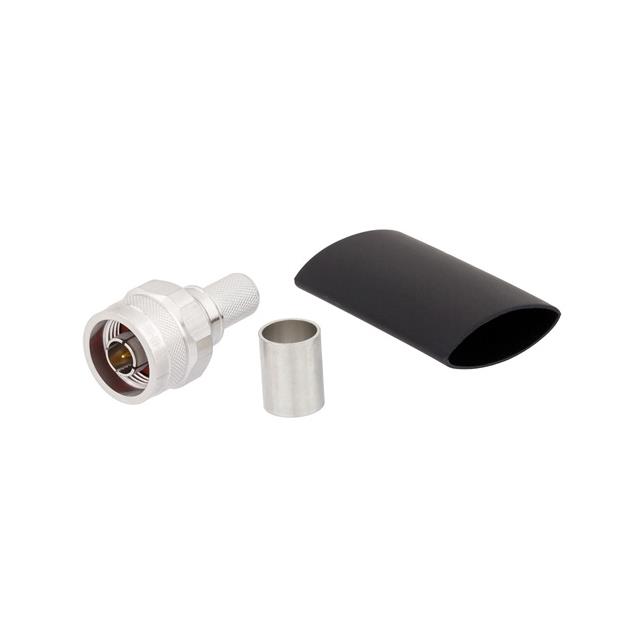

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | EZ-400-NMH-PL-X-LC |
|---|---|
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Cable Group | LMR-400 |
| Center Contact Material | Beryllium Bronze |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insertion Loss | 0.05 dB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Termination | Crimp |
