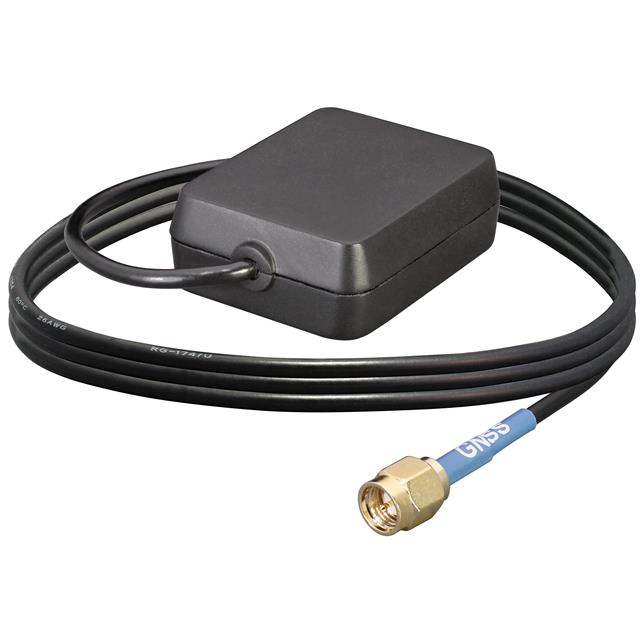

ANT-GNRM-L1A-3
Module Antenna, Multi Band, GNSS / GPS, Remote Mount, Magnetic Mount, SMA, Directional, Single Port, > 6 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-GNRM-L1A-3 |
|---|---|
| Antenna Type | Module |
| Applications | GLONASS, GNSS, Galileo, BEIDOU, GPS |
| Features | 3m, Cable, LNA |
| Frequency (Center/Band) | 1.602GHz, 1.601GHz, 1.561GHz, 1.575GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Gain | 33.5 dBi, 33.4 dBi, 32.8 dBi |
| Height (Max) | 0.591 in |
| Ingress Protection | IP67 |
| Mounting Type | Magnetic |
| Number of Bands | 4 |
| Return Loss | -19.9dB, -19dB, -14.5dB |
| Return Loss | -14.5 dB, -19.9 dB, -19 dB |
| RF Family/Standard | Navigation |
| Termination Type | SMA Male |
| VSWR | 1.3, 1.5, 1.2 |
