2834105-4
ActiveTE Connectivity AMP Connectors
MODULAR CONNECTORS / ETHERNET CONNECTORS 5.0MM SIDE ENTRY MSC 5P_GY
2834105-4
ActiveTE Connectivity AMP Connectors
MODULAR CONNECTORS / ETHERNET CONNECTORS 5.0MM SIDE ENTRY MSC 5P_GY
Description
General part information
2834105-4

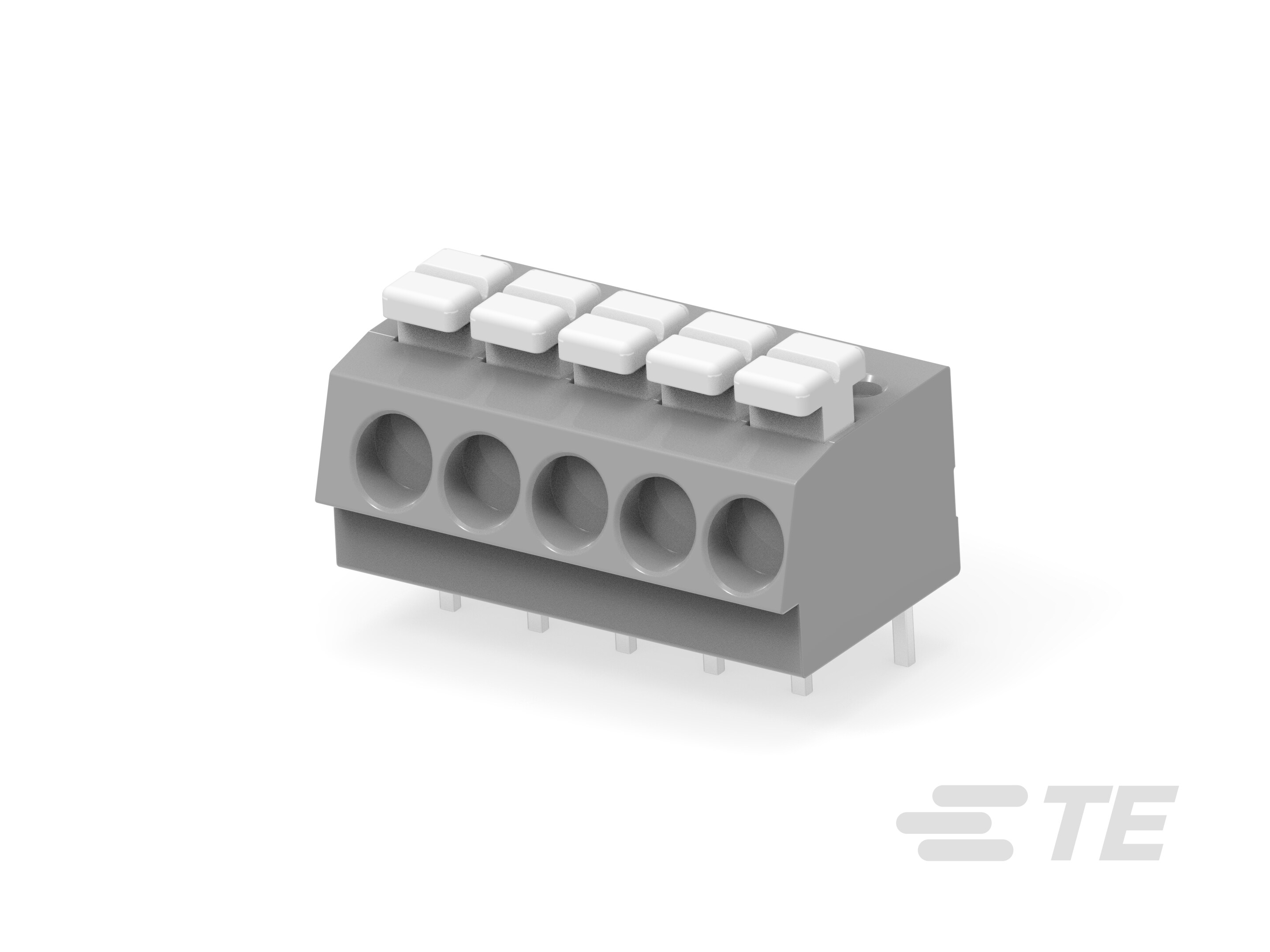

5 Position PCB Terminal Block, Receptacle, Wire-to-Board, 5 mm [.196 in] Centerline, 1 Row, 90° Wire Entry Angle, 24 – 12 AWG, .34 – 4 mm² Wire
Technical Specifications
Parameters and characteristics for this part
| Specification | 2834105-4 |
|---|---|
| Color | Gray |
| Current | 10 A |
| Features | Push Button Actuated |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 5.08 mm |
| Positions Per Level | 5 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
| Wire Termination | Leg Spring, Screwless, Push-In Spring |
