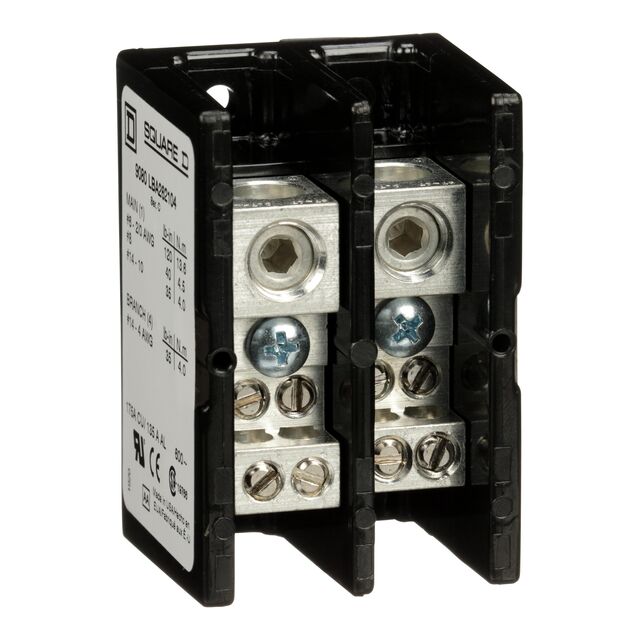

9080LBA262104
ActiveSCHNEIDER ELECTRIC
POWER DISTRIBUTION BLOCK 600V 17
9080LBA262104
ActiveSCHNEIDER ELECTRIC
POWER DISTRIBUTION BLOCK 600V 17
Description
General part information
9080LBA262104
2 Pole Power Distribution Block 175 A 600 V
Technical Specifications
Parameters and characteristics for this part
| Specification | 9080LBA262104 |
|---|---|
| Current Rating | 175 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 1 |
| Line Side Wire Size (Max) | 14 AWG, 14 |
| Line Side Wire Size (Max) | 14 AWG |
| Line Side Wire Size (Min) | 2/0 |
| Line Side Wire Size (Min) | 0 AWG |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 4 |
| Load Side Wire/Stud Size (AWG) (Max) | 14 AWG |
| Load Side Wire/Stud Size (AWG) (Min) | 4 AWG |
| Number of Poles | 2 |
| Type | Power Distribution Block |
| Voltage - Rated | 600 V |
