072,AL

Active

Serpac

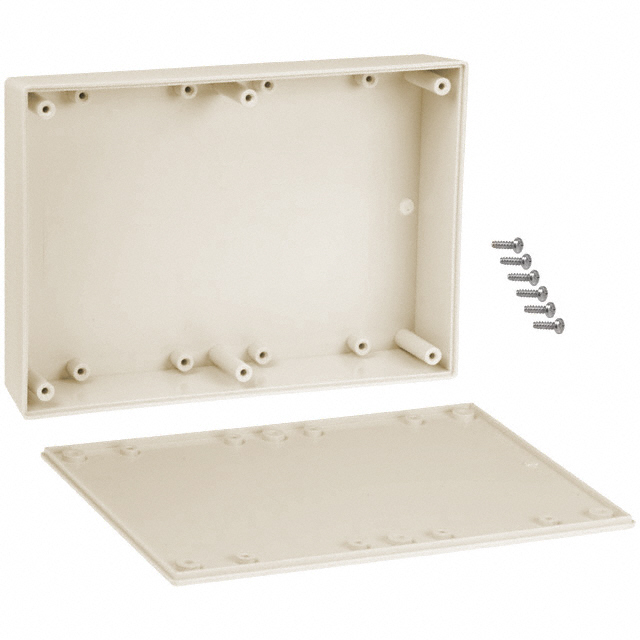

BOX ABS ALMOND 6.88"L X 4.88"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 6.88"L X 4.88"W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	072,AL	072 Series

Area (L x W) [custom]	217 cm˛	217 cm˛
Area (L x W) [custom]	33.6 in˛	33.6 in˛
Color	Almond	Gray, Black, Almond
Container Type	Box	Box
Design	Cover Included, Hand Held	Cover Included, Hand Held
Features	PCB Supports	PCB Supports
Height [z]	35.56 mm	35.56 mm
Height [z]	1.4 in	1.4 in
Material	Plastic, ABS	Plastic, ABS
Material Flammability Rating	UL94 HB	UL94 HB
Ratings	IP40, NEMA 1	IP40, NEMA 1
Size / Dimension [x]	174.75 mm	174.75 mm
Size / Dimension [x]	6.88 in	6.88 in
Size / Dimension [y]	123.95 mm	123.95 mm
Size / Dimension [y]	4.88 in	4.88 in
Thickness	2.54 mm	2.54 mm
Thickness	0.1 in	0.1 in

BOX ABS GRAY 6.88"L X 4.88"W

Part	Color	Container Type	Ratings	Features	Design	Material	Height [z]	Height [z]	Area (L x W) [custom]	Area (L x W) [custom]	Material Flammability Rating	Thickness	Thickness	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]
Serpac 072,GY	Gray	Box	IP40, NEMA 1	PCB Supports	Cover Included, Hand Held	Plastic, ABS	35.56 mm	1.4 in	217 cm˛	33.6 in˛	UL94 HB	2.54 mm	0.1 in	123.95 mm	174.75 mm	4.88 in	6.88 in
Serpac 072,BK	Black	Box	IP40, NEMA 1	PCB Supports	Cover Included, Hand Held	Plastic, ABS	35.56 mm	1.4 in	217 cm˛	33.6 in˛	UL94 HB	2.54 mm	0.1 in	123.95 mm	174.75 mm	4.88 in	6.88 in
Serpac 072,AL	Almond	Box	IP40, NEMA 1	PCB Supports	Cover Included, Hand Held	Plastic, ABS	35.56 mm	1.4 in	217 cm˛	33.6 in˛	UL94 HB	2.54 mm	0.1 in	123.95 mm	174.75 mm	4.88 in	6.88 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.42

General part information

Box Plastic, ABS Almond Hand Held, Cover Included 6.880" L x 4.880" W (174.75mm x 123.95mm) X 1.400" (35.56mm)
