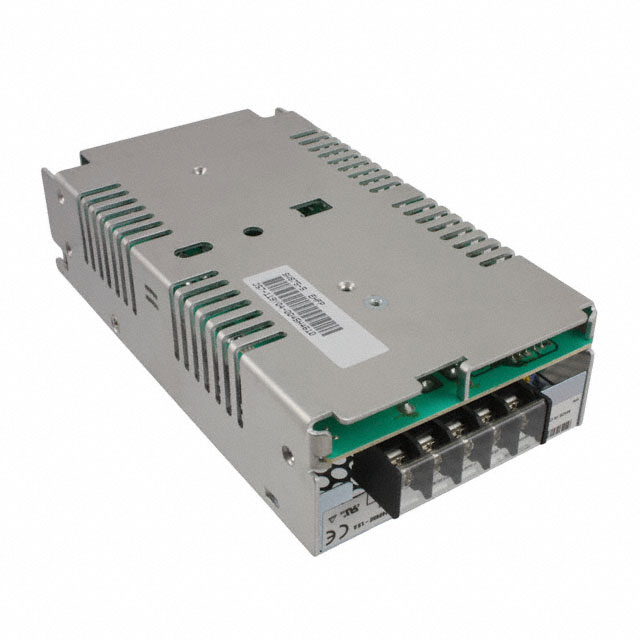

SWS75-15
ObsoleteTDK Corporation
AC/DC CONVERTER 15V 75W
SWS75-15
ObsoleteTDK Corporation
AC/DC CONVERTER 15V 75W
Description
General part information
SWS75-15
Enclosed AC DC Converters 1 Output 15V 85 ~ 265 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | SWS75-15 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, TUV, CE |
| Current - Output 1 | 5 A |
| Efficiency | 85 % |
| Features | PFC, Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 74 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 75 W |
| Size / Dimension Height | 1.69 in |
| Size / Dimension Length | 6.69 in |
| Size / Dimension Width | 3.7 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 265 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 15 V |
