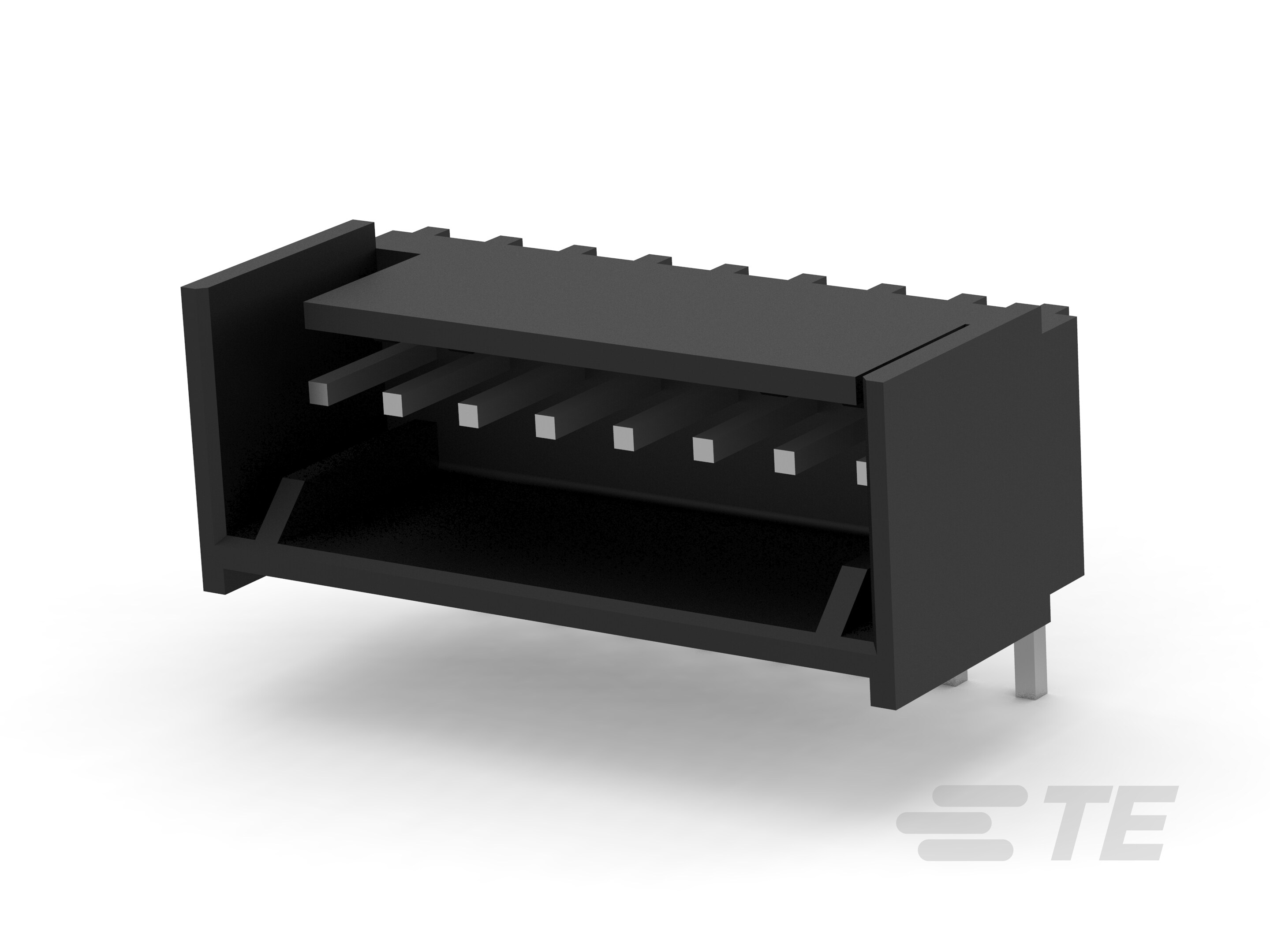

08P MTA100 SHRD HDR ASSY RA FL-2-644803-8

2-644803-8

Active
TE Connectivity AMP Connectors

HEADERS & WIRE HOUSINGS 08P MTA100 SHRD HDR ASSY RA FL

Find alt
08P MTA100 SHRD HDR ASSY RA FL-2-644803-8

2-644803-8

Active
TE Connectivity AMP Connectors

HEADERS & WIRE HOUSINGS 08P MTA100 SHRD HDR ASSY RA FL

Find alt

Description

General part information

MTA-100 Series

PCB Mount Header, Right Angle, Wire-to-Board, 8 Position, 2.54 mm [.1 in] Centerline, Fully Shrouded, Tin (Sn), Through Hole - Solder, Signal, MTA 100

Technical Specifications

Parameters and characteristics for this part

Specification2-644803-8
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Length - Mating0.2 in
Contact Length - Post0.13 in
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Current Rating0 A
Current RatingVaries by Wire Gauge
Fastening TypeFriction Lock
Insulation ColorBlack
Insulation Height0.343 in
Insulation MaterialPolyester
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions8
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-55 °C
Pitch - Mating0.1 in
ShroudingShrouded - 4 Wall
StyleCable/Wire, Board
TerminationSolder
Voltage Rating250 V
