Description

General part information

2367197 Series

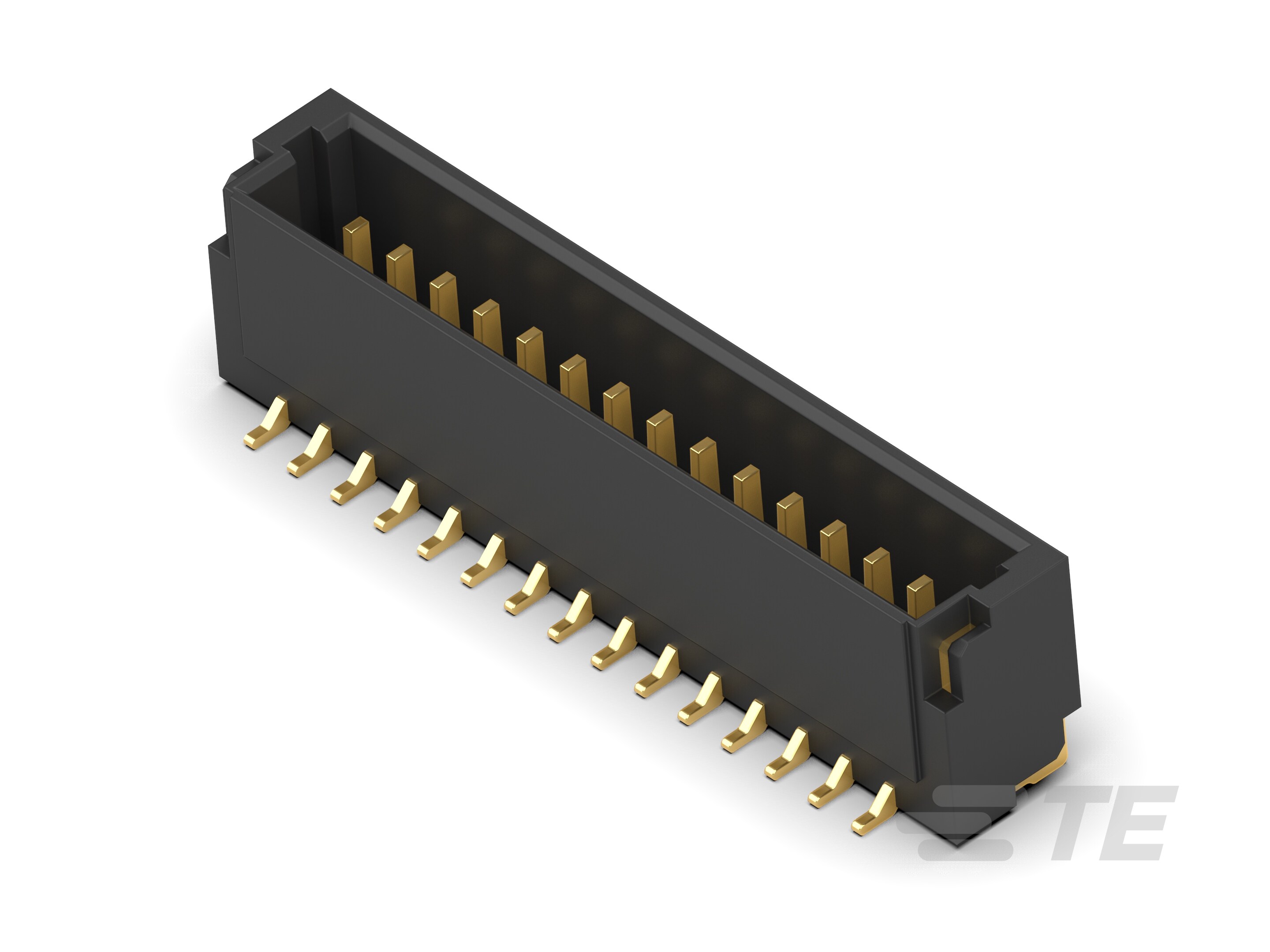

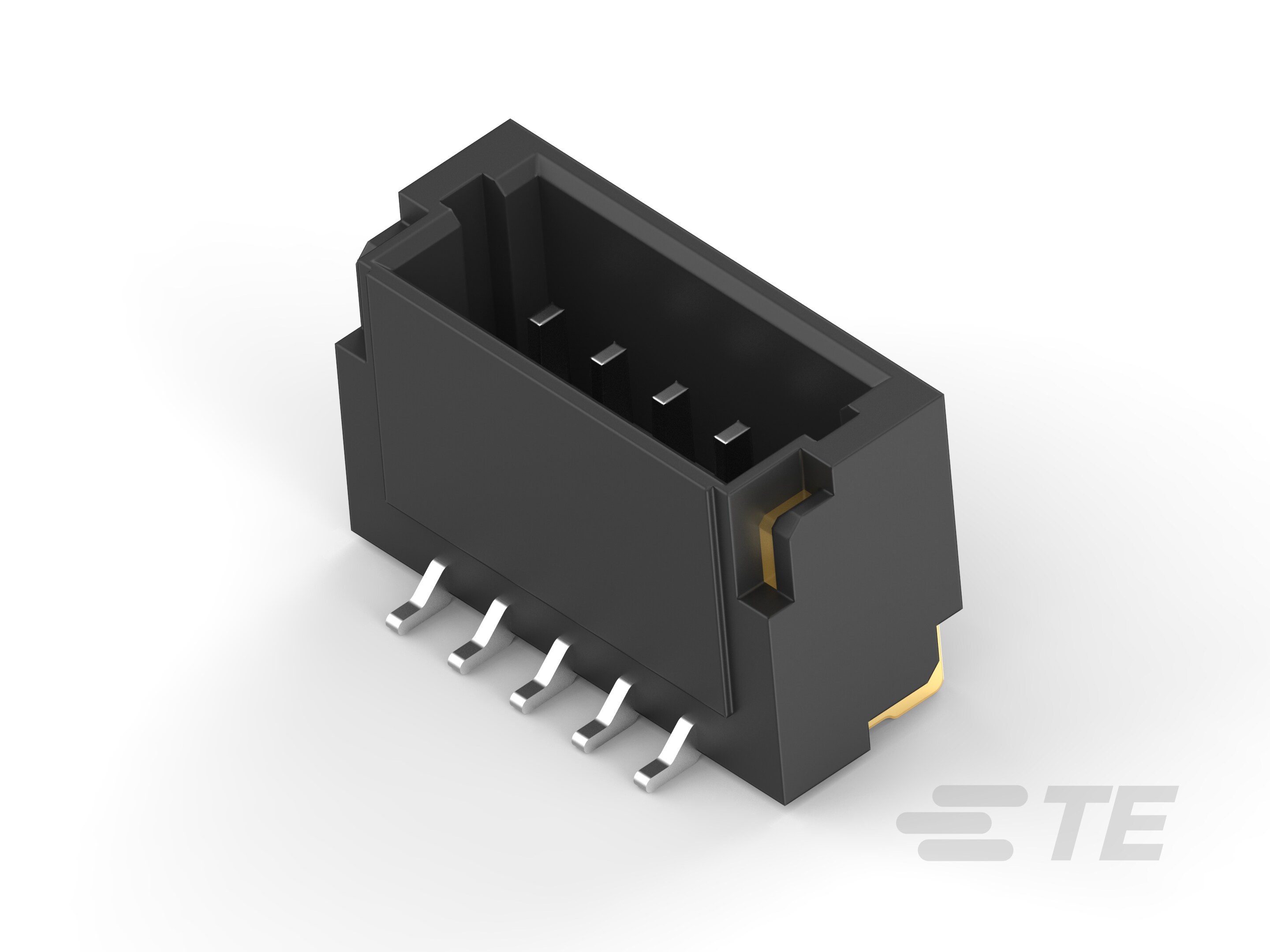

PCB Mount Header, Vertical, Wire-to-Board, 5 Position, 1 mm [.039 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, Signal, Black, Tape & Reel

Technical Specifications

Parameters and characteristics for this part

Specification4-2367197-5
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostGold
Contact Finish Thickness - Mating3 µin
Contact Finish Thickness - PostFlash
Contact Finish Thickness - Post (string_set)Flash
Contact MaterialCopper Alloy
Contact ShapeRectangular
Contact TypeMale Pin
Current Rating (Per Contact)1 A
Fastening TypeLocking Ramp
FeaturesSolder Retention
Insulation ColorBlack
Insulation Height0.169 in
Insulation MaterialHalogen Free, Plastic
Material Flammability RatingUL94 V-0
Mounting TypeSurface Mount
Number of Positions5
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)85 °C, 105 °C
Operating Temperature (Min)-40 °C
Pitch - Mating0.039 in
ShroudingShrouded - 4 Wall
StyleCable/Wire, Board
TerminationSolder
Voltage Rating50 V
