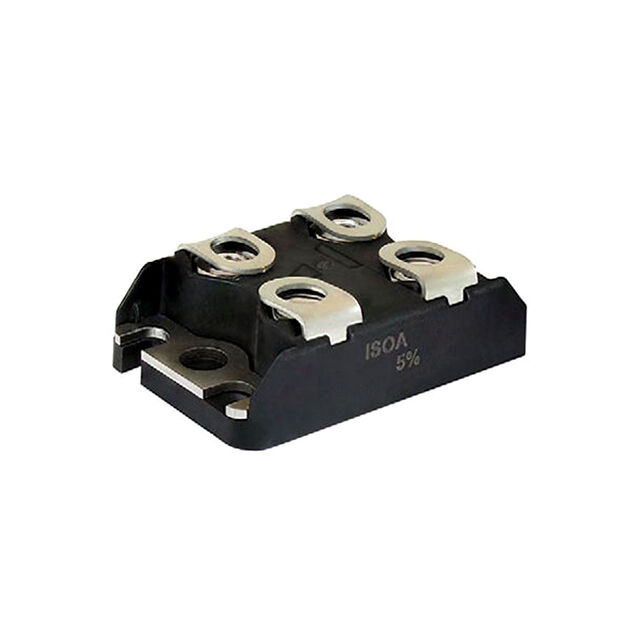

ISOA100R12202JT
ActiveVishay Dale
ISOA 100 R1 22K 5% TUBE
ISOA100R12202JT
ActiveVishay Dale
ISOA 100 R1 22K 5% TUBE
Description
General part information
ISOA100R12202JT
22 kOhms ±5% 100W Thick Film Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | ISOA100R12202JT |
|---|---|
| Coating | Aluminum |
| Composition | Thick Film |
| Features | Non-Inductive |
| Height - Seated (Max) | 0.48 in |
| Housing Type | Aluminum |
| Lead Style | M4 Threaded |
| Mounting Feature | Flanges |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | SOT-227-4 |
| Power (Watts) | 100 W |
| Resistance | 22 kOhm |
| Size / Dimension Length | 1.504 in |
| Size / Dimension Width | 0.984 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 5 % |
