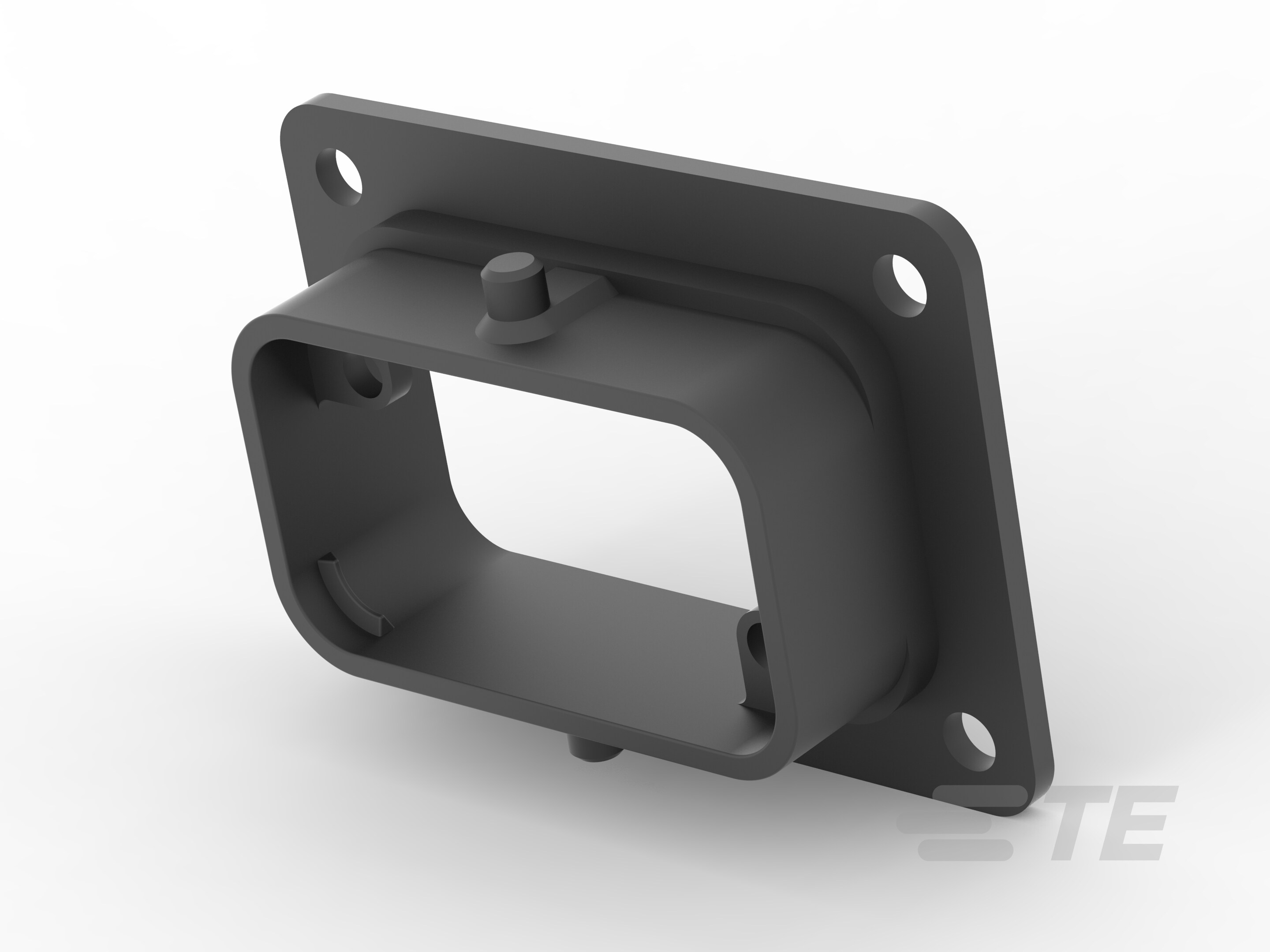

Specification	2295892-1

Connector Type	Base - Panel Mount
Housing Color	Black
Housing Material	Nylon 6/6, Glass Filled, PA66, Polyamide
Lock Location	Locking Clip (1) on Hood
Size / Dimension Height	0.63 in
Size / Dimension Length	2.291 in
Size / Dimension Width	1.898 in
Style	Bottom Entry

HDC Series

...

Part	Wire Gauge	Pin or Socket	Contact Finish	Contact Termination	Connector Type	Housing Material	Lock Location	Ingress Protection IP Rating	Ingress Protection Description	Thread Size	Housing Finish	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Housing Color	Size	Style	Number of Modules	Frame Type	Gender	Material	Material Flammability Rating	Color	Contact Type	Current Rating	Number of Positions	Position Types	Voltage Rating	Termination Style	Contact Finish Thickness	Type	Specifications	Accessory Type	For Use With/Related Products
TE Connectivity AMP Connectors T2030002005-000	20 AWG	Socket	Silver	Crimp
TE Connectivity AMP Connectors T1920160225-000					Hood	Aluminum Alloy Die Cast	Screw Locks on Hood	IP68	Dust Tight Waterproof	M25	Powder Coated	125 °C	-40 °C	2.283 in	4.4 in	6.535 in	Black	H16B	Dual Top Entry
TE Connectivity AMP Connectors T1910101125-000					Hood		Screw Locks on Hood	IP68	Dust Tight Waterproof	M25		125 °C	-40 °C					H10B	Side Entry
TE Connectivity AMP Connectors 1108780-1																		8		4	Carrier Shell Frame Docking	Female/Male	Zinc Alloy
TE Connectivity AMP Connectors T1926320148-000					Hood	Aluminum Alloy Die Cast	Screw Locks on Hood	IP68	Dust Tight Waterproof	PG48	Powder Coated	125 °C	-40 °C	3.709 in	4.382 in	6.535 in	Black	H32B	Top Entry
TE Connectivity AMP Connectors T1912101121-000					Hood	Aluminum Alloy Die Cast	Screw Locks on Hood	IP68	Dust Tight Waterproof	PG21	Powder Coated	125 °C	-40 °C	2.094 in	2.756 in	4.331 in	Silver	H10B	Side Entry
TE Connectivity AMP Connectors 2-1103012-3					Insert without Contacts	PC Polycarbonate						125 °C	-40 °C					6				Male		UL94 V-0	Beige	HD.M	10 A	40	Ground	250 V	Crimp
TE Connectivity AMP Connectors 2-1105151-1	11 AWG	Socket	Silver	Crimp																												78.7 µin	Machined
TE Connectivity AMP Connectors 2-1103011-3					Insert without Contacts	PC Polycarbonate						125 °C	-40 °C					5				Female		UL94 V-0	Beige	HD.M	10 A	25	Ground	250 V	Crimp
TE Connectivity AMP Connectors T3333292912-000																																		PG29 Thread	Cable Gland	Heavy Duty Housings
