5-160555-2
ActiveTE Connectivity AMP Connectors
QUICK DISCONNECT TERMINAL 17-20AWG BRASS F 16.9MM TIN T/R
5-160555-2
ActiveTE Connectivity AMP Connectors
QUICK DISCONNECT TERMINAL 17-20AWG BRASS F 16.9MM TIN T/R
Description
General part information
FASTON 110 Series

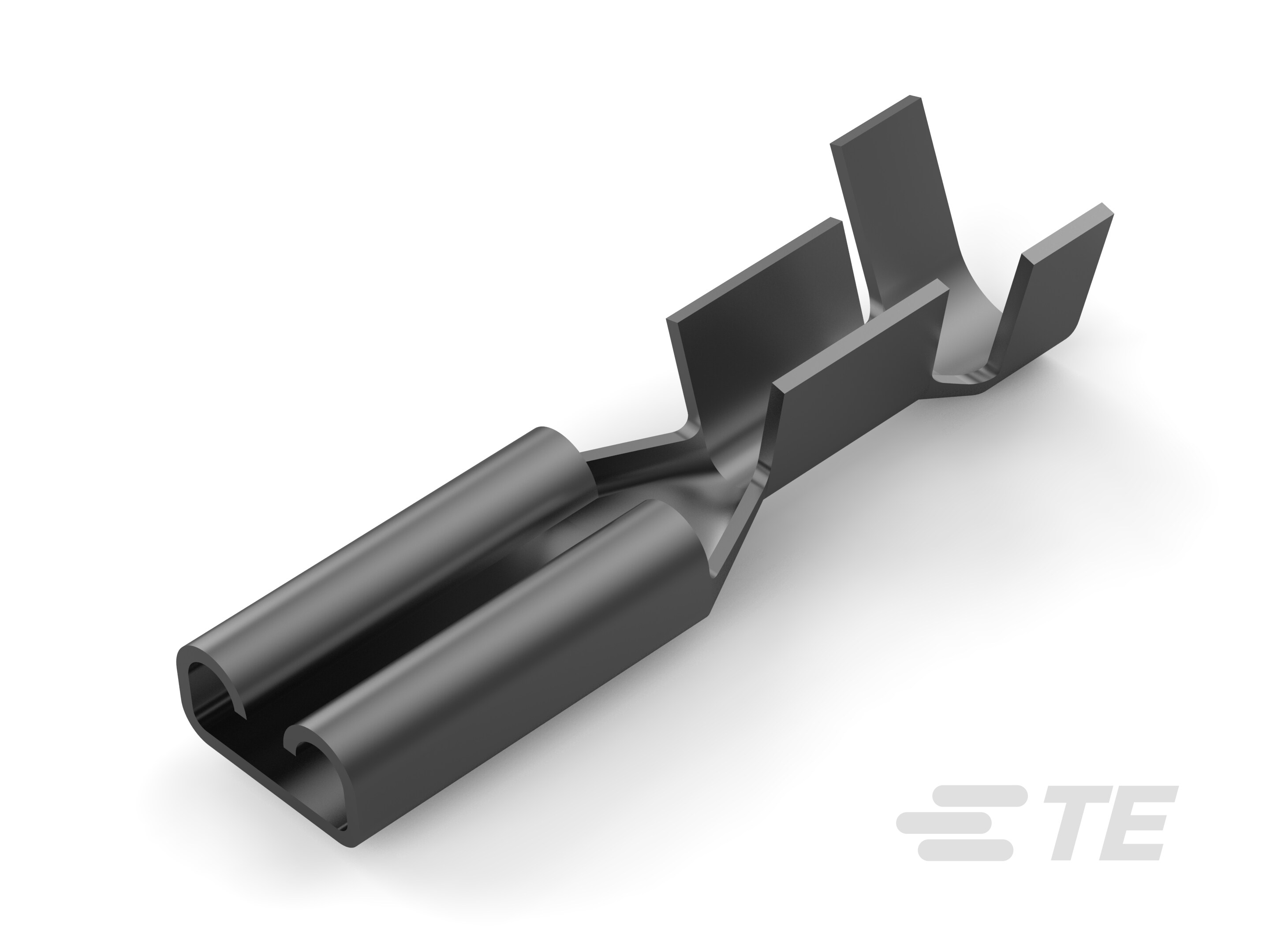

Quick Disconnect Receptacle, 20 – 18 AWG, .51 – 1.03 mm² Wire, 2.8 mm [.11 in] Tab Width, Straight, Brass, Tin Plating, Strip/Reel, FASTON 110
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-160555-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter (Max) | 0.118 in |
| Insulation Diameter (Min) | 0.079 in |
| Length - Overall | 0.551 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.248 in |
| Tab Thickness | 0.032 in |
| Tab Width | 0.11 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 20.5 AWG |
| Wire Gauge (AWG) (Min) | 17 AWG |
