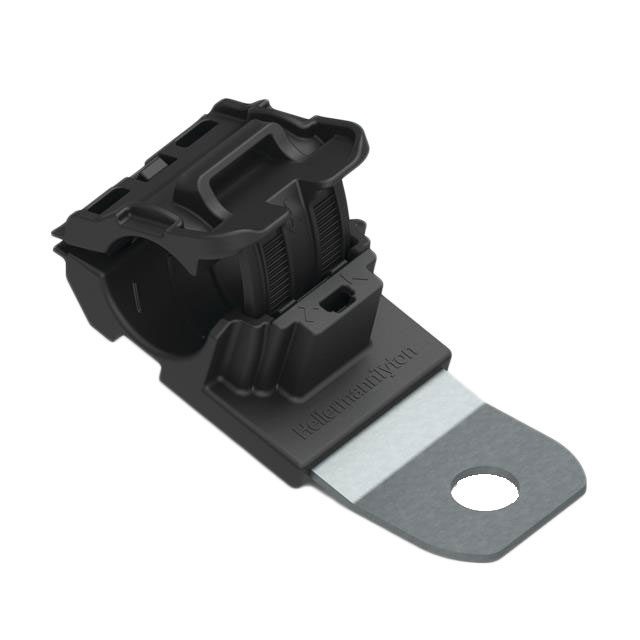

Specification	151-01648

Bundle Center to Mounting Center	1.902 in
Color	Black
Features	Impact Resistant, UV Resistant, Heat Stabilized, Chemical Resistant, Slotted for Cable Tie
Length	3.098 in
Material	6, Steel, Polyamide (PA66), Nylon 6
Material Flammability Rating	UL94 HB
Mounting Type	Fastener
Opening Size (Max)	0.77 in
Opening Size (Min)	0.47 in
Panel Hole Size	0.256 in
Screw Size	M6
Type	P-Type, Clamp
Type Attributes	Ribbed, Ratchet
Type Attributes Angle	15 °
Width	1.374 in

151-01 Series

...

Part	Type	Opening Size (Min)	Opening Size (Max)	Color	Length	Type Attributes Angle	Type Attributes	Material	Material Flammability Rating	Features	Width	Mounting Type	Panel Hole Size
HELLERMANNTYTON 151-01428	Clamp P-Type	0.21 in	0.54 in	Black	2.803 in	30 °	Ratchet Ribbed	6 Nylon 6 Polyamide (PA66) Steel	UL94 HB	Chemical Resistant Heat Stabilized Impact Resistant Slotted for Cable Tie UV Resistant	1.374 in	Fastener	0.327 in
HELLERMANNTYTON 151-01935	Clamp P-Type	0.244 in	0.539 in	Black	2.709 in	90 °	Ratchet Ribbed	6 Nylon 6 Polyamide (PA66) Steel	UL94 HB	Heat Stabilized Impact Resistant UV Resistant	1.374 in	Fastener	0.256 in
HELLERMANNTYTON 151-01644	Clamp P-Type	0.21 in	0.54 in	Black	3.811 in	90 °	Ratchet Ribbed	6 Nylon 6 Polyamide (PA66) Steel	UL94 HB	Chemical Resistant Heat Stabilized Impact Resistant Slotted for Cable Tie UV Resistant	1.374 in	Fastener	0.256 in
HELLERMANNTYTON 151-01923	Clamp P-Type	0.244 in	0.539 in	Black	3.421 in	15 °	Ratchet Ribbed	6 Nylon 6 Polyamide (PA66) Steel	UL94 HB	Heat Stabilized Impact Resistant UV Resistant	1.374 in	Fastener	0.256 in
HELLERMANNTYTON 151-01670	Clamp P-Type	0.21 in	0.54 in	Black	3.272 in	180 °	Ratchet Ribbed	6 Nylon 6 Polyamide (PA66) Steel	UL94 HB	Chemical Resistant Heat Stabilized Impact Resistant Slotted for Cable Tie UV Resistant	1.374 in	Fastener	0.256 in
HELLERMANNTYTON 151-01924	Clamp P-Type	0.244 in	0.539 in	Black	3.421 in	15 °	Ratchet Ribbed	6 Nylon 6 Polyamide (PA66) Steel	UL94 HB	Heat Stabilized Impact Resistant UV Resistant	1.374 in	Fastener	0.327 in
