8325-7003

Obsolete

3M (TC)

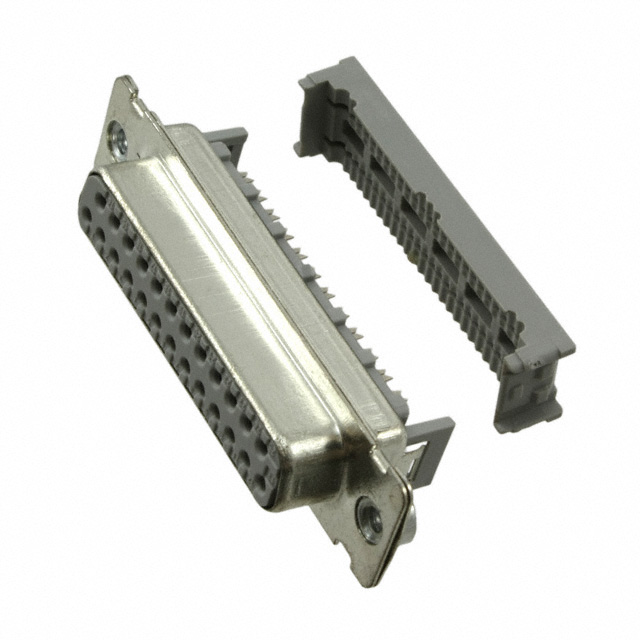

CONN D-SUB RCPT 25P PNL MNT IDC

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN D-SUB RCPT 25P PNL MNT IDC

Technical Specifications

Parameters and characteristics for this part

Specification	8325-7003

Color	Gray
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 m
Contact Finish Thickness	30 in
Contact Material	Copper Alloy
Contact Type	Signal
Dielectric Material	Glass Filled, Polybutylene Terephthalate (PBT), Polyester
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	IDC, Ribbon Cable

Part	Connector Type	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Dielectric Material	Termination	Flange Feature	Contact Finish	Material Flammability Rating	Color	Contact Type	Contact Material	Features
3M (TC) 8325-7009	Receptacle Female Sockets	D-Sub	0.76 Ám	30 Áin	B DB	3	105 ░C	-55 °C	2	Glass Filled Polybutylene Terephthalate (PBT) Polyester	IDC Ribbon Cable	Housing/Shell (Unthreaded)	Gold	UL94 V-0	Gray	Signal	Copper Alloy
3M (TC) 8325-7003	Receptacle Female Sockets	D-Sub	0.76 m	30 in	B DB	3	105 ░C	-55 °C	2	Glass Filled Polybutylene Terephthalate (PBT) Polyester	IDC Ribbon Cable	Housing/Shell (4-40)	Gold	UL94 V-0	Gray	Signal	Copper Alloy
3M (TC) 8325-6000	Receptacle Female Sockets	D-Sub	0.76 Ám	30 Áin	B DB	3	105 ░C	-55 °C	2	Glass Filled Polybutylene Terephthalate (PBT) Polyester	IDC Ribbon Cable	Housing/Shell (Unthreaded)	Gold	UL94 V-0	Gray	Signal	Copper Alloy	Feed Through
3M (TC) 8325-8009	Receptacle Female Sockets	D-Sub	0.76 Ám	30 Áin	B DB	3	105 ░C	-55 °C	2	Glass Filled Polybutylene Terephthalate (PBT) Polyester	IDC Ribbon Cable	Housing/Shell (Unthreaded)	Gold	UL94 V-0	Gray	Signal	Copper Alloy	Feed Through

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

25 Position D-Sub Receptacle, Female Sockets Connector
