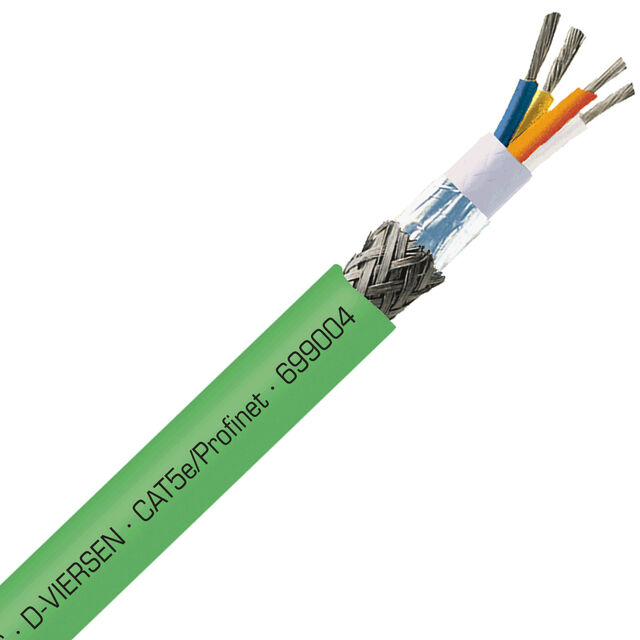

Specification	699004

Cable Type	Multi-Pair, Cat5e
Conductor Arrangement	Twisted
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Flame Retardant
Jacket (Insulation) Diameter	0.264 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Green
Length	Enter Number of Feet in Order Quantity
Number of Conductors	4
Number of Conductors - Pair	2
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-40 °C
Shield Coverage	100 %
Shield Material	Aluminum, Tinned, Copper
Shield Type	Braid, Foil
Usage	Datacom
Voltage	600 V
Wire Gauge	22 AWG
