ANM80-500MA

Active

OptiFuse

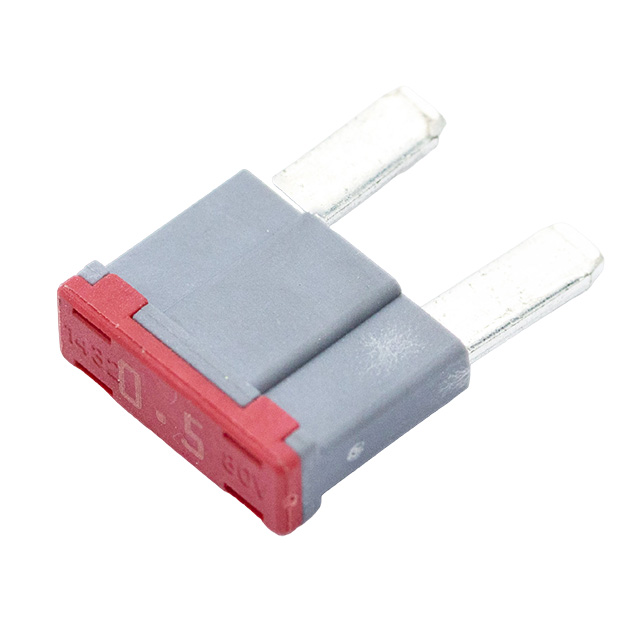

FUSE AUTO 500MA 80VDC BLADE MINI

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 500MA 80VDC BLADE MINI

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ANM80-500MA	ANM80 Series

Breaking Capacity @ Rated Voltage	1 kA	1 kA
Color	Dark Blue	Clear, Dark Blue, Green, Pink, Black
Current Rating (Amps)	0.5 A	0.5 - 30 A
Fuse Type	Automotive	Automotive
Mounting Type	Requires Holder	Requires Holder
Package / Case	Blade, Miniature	Blade, Miniature
Response Time	Fast Blow	Fast Blow
Size / Dimension [x]	11.8 mm	11.8 mm
Size / Dimension [x]	0.465 in	0.465 in
Size / Dimension [y]	4 mm	4 mm
Size / Dimension [y]	0.157 in	0.157 in
Size / Dimension [z]	0.354 in	0.354 in
Size / Dimension [z]	9 mm	9 mm
Voltage Rating - DC	80 V	80 V

FUSE AUTO 25A 80VDC BLADE MINI

Part	Package / Case	Fuse Type	Current Rating (Amps)	Color	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type	Voltage Rating - DC	Breaking Capacity @ Rated Voltage	Response Time
OptiFuse ANM80-25A	Blade, Miniature	Automotive	25 A	Clear	0.354 in	11.8 mm	4 mm	0.157 in	9 mm	0.465 in	Requires Holder	80 V	1 kA	Fast Blow
OptiFuse ANM80-500MA	Blade, Miniature	Automotive	0.5 A	Dark Blue	0.354 in	11.8 mm	4 mm	0.157 in	9 mm	0.465 in	Requires Holder	80 V	1 kA	Fast Blow
OptiFuse ANM80-30A	Blade, Miniature	Automotive	30 A	Green	0.354 in	11.8 mm	4 mm	0.157 in	9 mm	0.465 in	Requires Holder	80 V	1 kA	Fast Blow
OptiFuse ANM80-4A	Blade, Miniature	Automotive	4 A	Pink	0.354 in	11.8 mm	4 mm	0.157 in	9 mm	0.465 in	Requires Holder	80 V	1 kA	Fast Blow
OptiFuse ANM80-1A	Blade, Miniature	Automotive	1 A	Black	0.354 in	11.8 mm	4 mm	0.157 in	9 mm	0.465 in	Requires Holder	80 V	1 kA	Fast Blow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

500 mA AC 80 V DC Fuse Automotive Requires Holder Blade, Miniature
