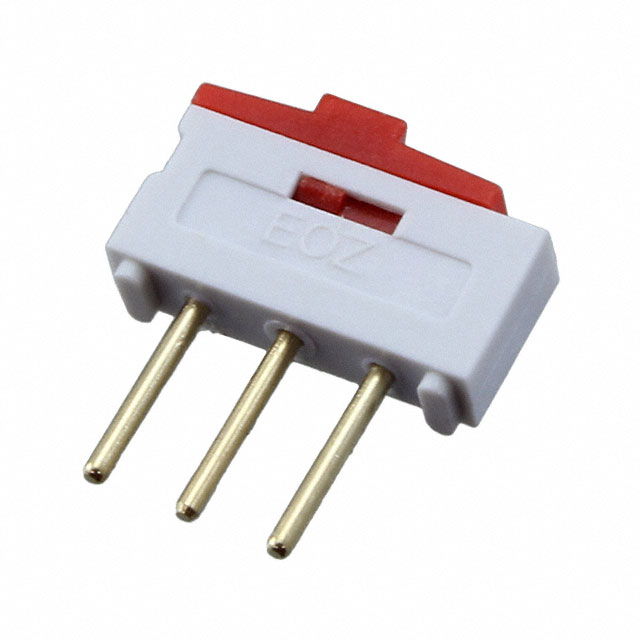

09.03201.02
ActiveEAO
SWITCH SLIDE SPDT 0.5A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
09.03201.02
ActiveEAO
SWITCH SLIDE SPDT 0.5A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 09.03201.02 |
|---|---|
| Actuator Length [x] | 1.4 mm |
| Actuator Type | Flush |
| Circuit | SPDT |
| Contact Finish | Gold |
| Contact Material | Nickel |
| Current Rating (Amps) | 500 mA |
| Electrical Life | 1000 Cycles |
| Mechanical Life | 10000 Steps |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.48 | |
| 10 | $ 2.23 | |||
| 25 | $ 2.11 | |||
| 50 | $ 2.01 | |||
| 100 | $ 1.91 | |||
| 300 | $ 1.83 | |||
| 500 | $ 1.70 | |||
| 1000 | $ 1.62 | |||
09.03201 Series
SWITCH SLIDE SPDT 0.5A 24V
| Part | Termination Style | Mounting Type | Circuit | Mechanical Life | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Electrical Life | Switch Function | Actuator Length [x] | Contact Finish | Current Rating (Amps) | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 09.03201.02 | PC Pin | Through Hole | SPDT | 10000 Steps | 24 V | 85 °C | -40 °C | Flush | 1000 Cycles | On-On | 1.4 mm | Gold | 500 mA | Nickel |
Description
General part information
09.03201 Series
Slide Switch SPDT Through Hole
