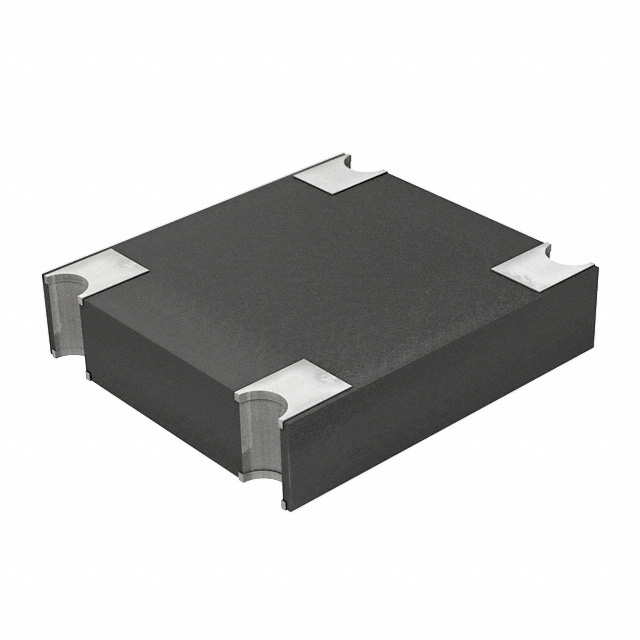

Z4GP208L-HF - Z4GP2 Series

Z4GP208L-HF

Active
Comchip Technology

BRIDGE RECT 1PHASE 800V 2A ABS

Deep-Dive with AI

Search across all available documentation for this part.

Z4GP208L-HF - Z4GP2 Series

Z4GP208L-HF

Active
Comchip Technology

BRIDGE RECT 1PHASE 800V 2A ABS

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationZ4GP208L-HF
Current - Average Rectified (Io)2 A
Current - Reverse Leakage @ Vr5 µA
Diode TypeSingle Phase
Mounting TypeSurface Mount
Operating Temperature [Max]175 ░C
Operating Temperature [Min]-55 °C
Package / Case4-SMD, No Lead
Supplier Device PackageABS(Z4)
TechnologyStandard
Voltage - Forward (Vf) (Max) @ If950 mV
Voltage - Peak Reverse (Max) [Max]800 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.89
10$ 0.77
100$ 0.54
500$ 0.45
1000$ 0.38
2000$ 0.34
Digi-Reel® 1$ 0.89
10$ 0.77
100$ 0.54
500$ 0.45
1000$ 0.38
2000$ 0.34
Tape & Reel (TR) 5000$ 0.32
10000$ 0.30
25000$ 0.29

Z4GP208 Series

BRIDGE RECT 1PHASE 800V 2A ABS

PartPackage / CaseTechnologyDiode TypeMounting TypeSupplier Device PackageVoltage - Forward (Vf) (Max) @ IfCurrent - Average Rectified (Io)Operating Temperature [Min]Operating Temperature [Max]Current - Reverse Leakage @ VrVoltage - Peak Reverse (Max) [Max]
Comchip Technology
Z4GP208L-HF
4-SMD, No Lead
Standard
Single Phase
Surface Mount
ABS(Z4)
950 mV
2 A
-55 °C
175 ░C
5 µA
800 V

Description

General part information

Z4GP208 Series

Bridge Rectifier Single Phase Standard 800 V Surface Mount ABS(Z4)
